Bitumen sprayers are specialized machines used to evenly distribute hot bitumen across road surfaces, ensuring a consistent coating that enhances the overall quality of pavement construction. They are designed to deliver controlled spraying with uniform coverage, which helps maintain surface consistency and supports the structural performance of the road. Known for their reliability and efficiency, bitumen sprayers contribute to high standards in road building by ensuring a smooth and well-bonded surface layer.
A bitumen sprayer typically consists of the following key components:
- Bitumen Tank – An insulated tank used to store hot bitumen, often equipped with a heating system to maintain the desired temperature.
- Burner Unit – Used to heat the bitumen in the tank, usually powered by diesel or gas.
- Spray Bar – A wide bar fitted with multiple nozzles that ensures uniform spraying of bitumen over the road surface.
- Nozzles – Located on the spray bar, these control the flow and pattern of bitumen spray for consistent coverage.
- Pump Unit – A high-pressure pump that circulates and supplies bitumen to the spray bar for controlled discharge.
- Bitumen Pipes and Valves – Connect various parts of the system, allowing regulated flow and direction of bitumen.
- Engine or Power Pack – Powers the pump, burner, and other mechanical systems.
- Control Panel – Allows the operator to manage spray width, pressure, temperature, and flow rate.
- Chassis or Mounting Platform – The frame or vehicle (usually truck-mounted or trailer-mounted) that supports the entire system.
- Cleaning System – Used to flush the spray lines and nozzles with diesel after operation to prevent clogging.
Applications of bitumen sprayers
Bitumen sprayers are used in several key application areas in road construction and maintenance:
- Surface Sealing: Used to apply bitumen over existing road surfaces before laying aggregates, enhancing the durability and smoothness of roads.
- Tack Coating: Sprays a thin layer of bitumen on existing pavements before applying new asphalt, improving the bonding between layers.
- Prime Coating: Used to treat base layers before asphalt is applied, ensuring strong adhesion and preventing water damage.
- Re-sealing: Applied to worn-out roads to maintain their surface, preventing cracks and further deterioration.
- Pothole Repair: Bitumen sprayers help in efficient repair of potholes by providing an even and reliable layer of bitumen.
- Maintenance of Roads: Used for periodic maintenance and to protect road surfaces from harsh weather conditions.
- Airport Runways: Ensures the application of bitumen to runways, providing a durable and smooth surface.
- Bridge Decks: Bitumen is used to waterproof and preserve bridge decks, ensuring longevity and structural integrity.
- Construction of New Roads: Vital in applying bitumen during the early stages of road construction to establish a strong foundation.
Advantages of using bitumen sprayers in road construction:
- Ensures consistent and even distribution of bitumen, which is critical for road quality.
- Enhances adhesion between pavement layers, reducing the risk of delamination.
- Speeds up the bitumen application process compared to manual methods.
- Controlled spraying minimizes over-application and saves bitumen.
- Leads to a smoother and more uniform road surface.
- Integrated heating systems keep bitumen at optimal application temperature.
- Reduces direct handling of hot bitumen, improving safety on-site.
- Can be used on different types of surfaces and road conditions.
- Advanced control panels allow fine adjustments in pressure, flow rate, and spray width.
- Capable of covering large areas in a short time, increasing daily output.
- Minimizes manual effort, reducing manpower costs.
- Delivers reliable and repeatable performance across different projects.
Types of Bitumen sprayers

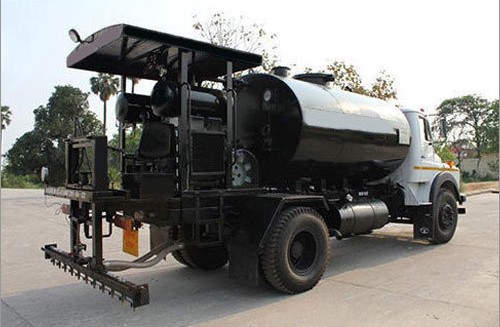

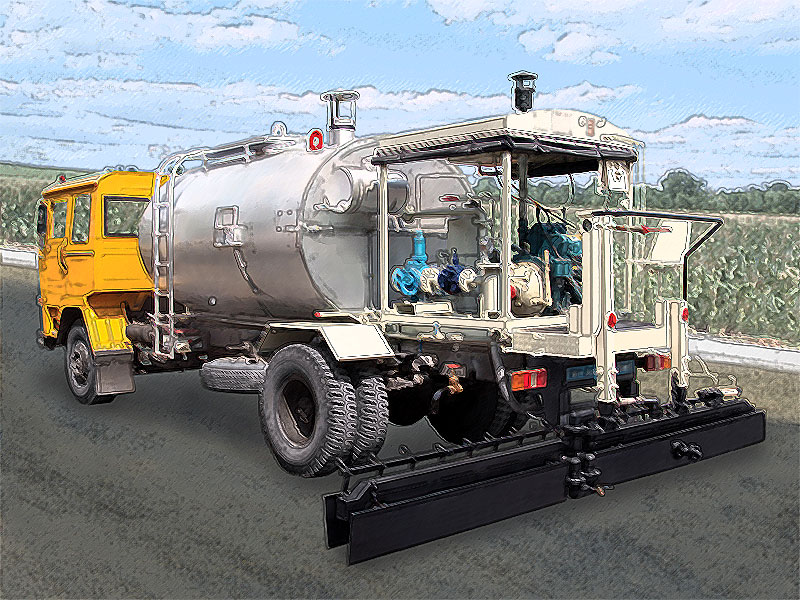

- Truck-Mounted Bitumen Sprayers
Truck-mounted bitumen sprayers are the most commonly used equipment in large-scale road construction projects. These sprayers are mounted on trucks, providing a large storage tank for bitumen and a spray bar for efficient distribution. The design allows for the quick and uniform application of bitumen over extensive areas, making them ideal for new road construction, resurfacing, and large maintenance projects. These sprayers are equipped with advanced heating systems to keep the bitumen at optimal temperature for smooth application, and their large capacity ensures continuous operation without frequent refills, boosting overall productivity.
- Trailer-Mounted Bitumen Sprayers
Trailer-mounted bitumen sprayers offer flexibility and portability, as they can be towed by various vehicles to different job sites. This type of sprayer is well-suited for smaller road construction projects and maintenance tasks. Though generally more compact than truck-mounted models, trailer-mounted sprayers still provide substantial storage for bitumen, and they are equipped with spray bars for uniform application. Their lightweight nature and mobility make them a preferred choice for contractors working on localized projects or when access to specific sites may be challenging for larger equipment.
- Self-Propelled Bitumen Sprayers
Self-propelled bitumen sprayers are designed with their own engine and wheels, making them independent of any towing vehicle. This autonomy provides increased maneuverability and precision, particularly in smaller or more intricate roadworks where flexibility is important. These sprayers are often used for tasks such as surface dressing or tack coating, where controlled and accurate bitumen application is essential. Their self-propelled nature allows operators to easily navigate tight or narrow spaces, making them ideal for urban road repairs or other projects where maneuverability is important. Additionally, they are equipped with a sophisticated control system that allows operators to adjust spray width, pressure, and flow for optimal performance.
- Mini Bitumen Sprayers
Mini bitumen sprayers are compact and portable units designed for smaller-scale applications. These sprayers are ideal for localized road repairs, patching, and maintenance of narrow roads or areas that larger sprayers cannot access. Despite their size, mini bitumen sprayers are efficient and capable of delivering precise and uniform bitumen coverage. They are easy to transport and set up, making them a valuable tool for small contractors or for road maintenance tasks in residential areas, urban settings, or tight spaces where larger equipment may be impractical.
- Bitumen Pressure Distributors
Bitumen pressure distributors are specialized machines designed to apply bitumen under pressure, ensuring a more uniform and precise coating. These sprayers are particularly useful for surface dressing, tack coating, and other applications where the even distribution of bitumen is critical. The high-pressure mechanism ensures that the bitumen is applied evenly across the surface, minimizing waste and improving bonding between layers. These sprayers are typically used in larger-scale road surfacing projects and are equipped with advanced features such as adjustable spray bars and computerized controls for precise application. The pressure distribution system also helps in reducing the risk of over-application or under-application of bitumen, enhancing the overall quality and durability of the road surface.
Key factors for selecting the right bitumen sprayer:
- Project Size: Match the sprayer type to the scale of the project for efficiency.
- Maneuverability: Consider the ease of movement in tight or narrow spaces.
- Storage Capacity: Choose based on the volume of bitumen required for the task.
- Precision: Ensure control over spray width, pressure, and flow for uniform application.
- Terrain & Environment: Select a sprayer suitable for the site conditions.
- Fuel Efficiency: Choose an energy-efficient model to minimize operational costs.
- Durability: Prioritize machines that are built to last and are easy to maintain.
- Cost: Stay within the project budget while ensuring optimal performance.
- Ease of Use: Look for sprayers that are easy to operate and require minimal training.
Conclusion
Bitumen sprayers play a key role in road construction and maintenance by providing precise, efficient, and uniform application of bitumen. Their ability to ensure consistent coverage helps create high-quality, durable road surfaces, improving both the longevity and performance of roads. By enhancing efficiency and reducing material waste, bitumen sprayers are essential for achieving long-lasting, reliable infrastructure.
