Down-the-Hole (DTH) drilling is a technique used to create deep, precise holes in hard rock and challenging ground conditions. In this method, the hammer and drill bit are placed at the bottom of the drill string, directly engaging with the rock. The hammer delivers high-impact energy, breaking the rock, while compressed air removes the debris from the hole, ensuring smooth and efficient drilling. DTH drilling is known for its ability to maintain drilling accuracy, speed, and reliability, making it an essential method for large-scale construction, mining, and infrastructure projects that require deep holes.
Applications of Down-the-Hole (DTH) Drilling
- Piling for deep foundations: Used to drill holes for piling in foundation work, ensuring stability and support for structures.
- Blast hole drilling: Commonly used for drilling blast holes in mining and quarrying operations, as well as in road and tunnel construction.
- Anchoring: Applied for creating anchor holes in slope stabilization projects and retaining structures.
- Rock socketing: Used in dam and bridge construction to drill into rock for securing foundation supports.
- Geotechnical exploration: Employed in soil investigation and sampling for large-scale infrastructure projects.
- Water well drilling: Suitable for drilling deep wells in areas with hard rock formations.
- Tunneling: Utilized in tunnel construction to drill precise holes for blasting or installations.
Advantages of Down-the-Hole (DTH) Drilling
- Produces straight, accurate holes with minimal deviation.
- Allows quick penetration, especially in hard rock.
- Generates minimal vibration, improving safety and stability.
- Uses compressed air to keep the hole clear of debris.
- Capable of drilling deep holes for large projects.
- Consumes less energy compared to hydraulic methods.
- Faster drilling and reduced maintenance lower costs.
- Causes less disruption to surrounding areas.
- Produces less noise, ideal for urban environment
How does the Down-the-Hole (DTH) Drilling method work?
- Compressed air is supplied to power the DTH hammer and clear debris from the hole.
- The pneumatic or hydraulic hammer at the bottom of the drill string delivers rapid, high-impact blows directly to the drill bit.
- The hammer’s impacts break the rock while the drill bit advances deeper into the ground.
- Compressed air flushes the debris created by the drilling process out of the hole to maintain clear and efficient drilling.
- The process continues, with the drill bit advancing further into the rock until the desired depth is reached.
- Once the hole reaches the required depth, the drill string is removed, leaving behind a straight and clean hole.
Different types of equipment used in Down-the-Hole (DTH) Drilling

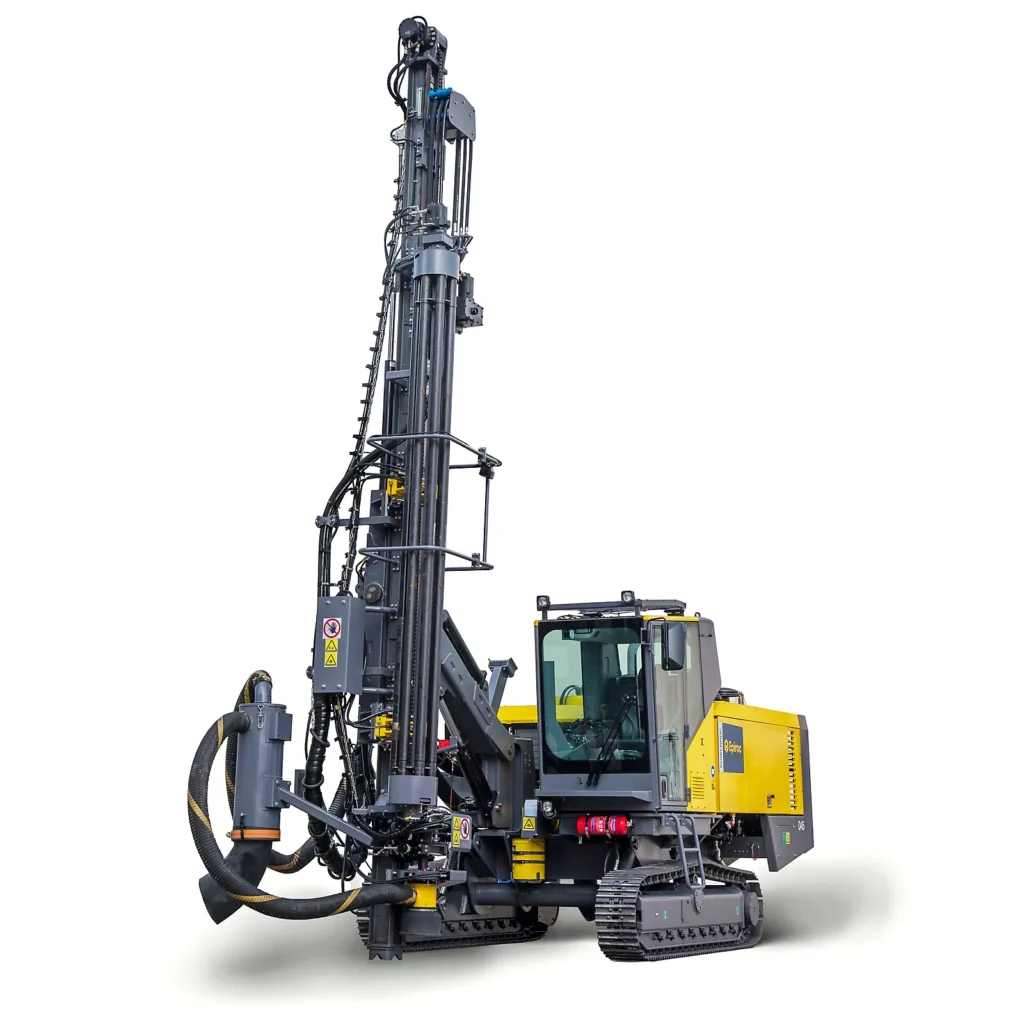

- DTH Drill Rig: The DTH drill rig is a powerful, mobile machine that serves as the core equipment for DTH drilling operations. It is equipped with the necessary power to operate the DTH hammer and drill bits. These rigs are often mounted on either tracked or wheeled chassis, providing high mobility across various terrains. The mobility allows the rig to easily shift positions at the drilling site and efficiently access different drilling locations, making it ideal for large-scale construction or mining projects.
- Crawler Excavator: The crawler excavator is a versatile, heavy-duty vehicle used to transport and position the DTH drill rig on-site. It is specifically designed with a set of tracks (rather than wheels), which provide enhanced stability and mobility on rough or uneven ground. Crawler excavators are essential in large-scale operations, where their capacity to carry heavy loads and navigate challenging landscapes helps ensure the rig is positioned correctly for optimal drilling performance.
- Hydraulic Truck: Hydraulic trucks are specialized vehicles that support the DTH drilling rig by enabling precise vertical movement. These trucks have hydraulic systems that allow for better positioning of the rig for different drilling applications. The ability to adjust the height and position of the drill rig provides flexibility and accuracy during the drilling process, especially when working in confined spaces or on uneven terrain.
- Rotary Drilling Rig: The rotary drilling rig is another type of large, heavy-duty equipment that can be used in conjunction with DTH drilling. While it is often employed for conventional rotary drilling, it can complement DTH drilling by providing the necessary rotation and force to drill into hard rock formations. These rigs are known for their ability to penetrate difficult ground conditions, making them versatile for large infrastructure projects where different types of drilling are required.
- Tractor Mounted Drilling Rig: This drilling rig is mounted on a tractor and designed for mobility in rough terrains. It is particularly useful for smaller-scale or remote DTH drilling operations where access to the site may be limited. The tractor-mounted rig can easily move across difficult landscapes, providing an efficient and flexible drilling solution for projects located in less accessible areas or with limited infrastructure.
- Boom Truck: A boom truck is a versatile vehicle equipped with a crane that is used to transport, position, and set up the DTH rig. The crane’s lifting capacity allows for the easy handling of heavy drilling equipment, ensuring that the DTH rig can be placed in the correct location. Boom trucks are commonly used in large infrastructure projects, where precise positioning of drilling equipment is required, especially in urban or confined spaces.
- Loader: A loader is a heavy-duty machine used for transporting materials and tools to and from the drilling site. This equipment ensures that drilling operations run smoothly by preventing delays in material handling. Loaders are also useful for clearing debris and moving rock cuttings away from the drilling area, which helps maintain a clean and safe work environment.
- Drill Rig Carrier: A drill rig carrier is a specialized vehicle designed to carry both drilling equipment and the DTH rig itself across challenging terrains. These carriers are important for transporting large, heavy equipment from one location to another, ensuring the rig is safely moved to different drilling sites. Their design ensures efficiency in transporting equipment, especially when working in rugged or remote areas where conventional vehicles may struggle.
- Skid Steer Loader: The skid steer loader is a compact, powerful machine used for transporting equipment and materials around the drilling site. With its ability to maneuver in tight spaces and perform quick tasks, the skid steer loader is ideal for small-scale projects or areas with limited access. It provides excellent maneuverability and can be used for various tasks, including moving tools, clearing debris, or assisting with site preparation.
Conclusion
As a drilling method, Down-the-Hole (DTH) offers a balanced combination of precision, depth, and efficiency. Its direct impact mechanism ensures effective rock penetration with minimal deviation, making it a pivotal choice for projects that demand accuracy in tough ground conditions.
