Pre-engineered buildings, or PEBs, have become a preferred solution across a wide range of applications—industrial sheds, warehouses, logistics facilities, and increasingly, commercial structures. Their growing use is largely due to faster project timelines, controlled construction costs, and design flexibility. Yet, beyond these advantages, the long-term performance of a PEB depends on the depth and accuracy of its structural planning and designing
From managing how loads travel through the frame to ensuring stability against wind or seismic activity, every engineering decision contributes to the building’s strength and service life. A strong foundation, precise connection detailing, and appropriate material selection all play a role in creating a structure that not only meets performance expectations but continues to do so reliably over time.
Understanding Load Distribution
In a PEB, loads don’t just come from the roof weight or what’s stored inside. Several types of loads act on the structure, often simultaneously. Understanding these is the first step to designing a reliable building.
Types of Loads
- Dead Load: The weight of the structure itself—columns, rafters, purlins, cladding, roofing material, and any permanent mechanical installations.
- Live Load: Varies by use. For example, maintenance workers walking on the roof, suspended lights, or even water tanks.
- Wind Load: This can have a large impact, especially in taller or isolated buildings. Wind pressure causes suction on one side and compression on the other. This must be addressed in both longitudinal and transverse directions.
- Seismic Load: If the building is in an earthquake-prone region, the design must factor in lateral forces that can cause sway or collapse.
- Collateral Load: Often overlooked, these include utility items like HVAC systems, fire suppression lines, or electrical trays that add weight to roof purlins.
- Equipment Loads: For facilities with cranes, solar panels, or ducting, the dynamic and point loads are more complex.
Load Transfer Path
In a PEB, loads usually travel from the roofing sheets to purlins, which then pass them onto rafters. Rafters transfer the load to columns, which then take it down to the foundation. For lateral stability, bracing systems take loads to the ground in a different path, usually through diagonals or rigid connections.
If the path is broken at any point—say, a poorly connected purlin or an under-designed rafter—the load won’t travel safely, and that could lead to local or full failure. That’s why getting the path and interaction between elements right is so important.
Maintaining Structural Stability
Structural stability is about ensuring that the entire building resists movement, especially lateral sway. While each member must carry its load, they also have to work together as a system.
Framing System
The main frame of a PEB typically consists of columns and rafters forming rigid portals. These handle the main vertical and horizontal loads. The span between these frames varies based on the project—sometimes 6 meters, sometimes 12 or more.
The geometry of the frame, whether it’s symmetrical or asymmetrical, affects how loads are distributed and how the structure reacts under stress. The use of tapered sections instead of prismatic members helps reduce steel consumption but must be balanced with buckling and local stress checks.
Bracing Systems
Stability comes from bracing. Common forms include:
- Rod Bracing: Used in roof and sidewalls to transfer lateral loads to the foundation.
- Cable Bracing: Provides flexibility but needs careful tensioning.
- Portal Frames or Rigid End Frames: Used when architectural constraints don’t allow for bracing. These are heavier and more expensive but help in keeping spaces open.
The goal is to limit drift, resist collapse during events like strong winds or earthquakes, and ensure that no part of the building deforms in a way that compromises usability or safety.
Foundation Design
No matter how well the superstructure is designed, if the foundation is weak or mismatched, the entire system is compromised. Since PEBs are light compared to RCC buildings, foundations must be designed to handle uplift and sliding in addition to vertical loads.
Foundation Type
The type of foundation used depends on soil conditions and loading requirements. In good soil, isolated footings work well for standard spans. If columns are spaced closely or if the soil is poor, combined footings or raft foundations might be needed. In coastal or flood-prone areas, pile foundations are also used.
A geotechnical investigation is essential. It informs the safe bearing capacity of soil, groundwater levels, and likely settlement. These inputs decide foundation depth, width, and reinforcement.

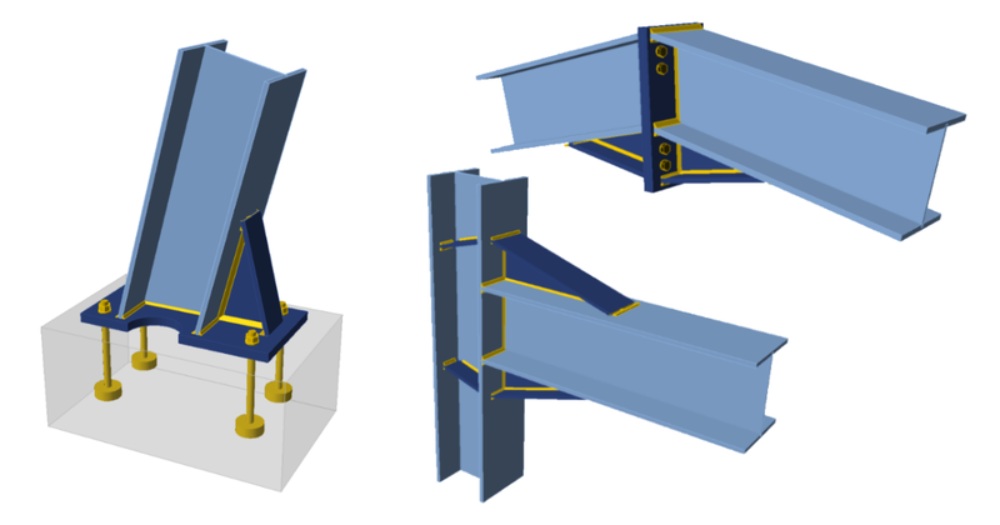

Anchor Bolts and Base Plates
Anchor bolts connect the steel column to the concrete pedestal. Their placement must be exact. Since most steel columns are pre-drilled and fabricated off-site, errors in bolt layout can delay construction.
Base plates must be sized for bearing and shear. Non-shrink grout is used between the plate and the pedestal to ensure even load transfer. Any compromise here—like uneven leveling or poor bolt tightening—can lead to cracks or tilting over time.
Connection Detailing
In any steel building, joints and connections are often where issues start. In PEBs, most connections are bolted rather than welded on-site. This saves time and avoids dependency on field welding quality. However, it increases the need for precision.
Types of Connections
- Moment Connections: Used at key joints like the rafter-column junction. These connections resist bending and are designed with flange plates or end plates with high-strength bolts.
- Shear Connections: Used where only vertical load is transferred, like purlins or girts connected to rafters or columns. Simpler and faster to install.
Connections must be detailed to account for factors like eccentricity, bolt shear, bearing strength, and plate thickness. Field errors like under-tightening bolts or misaligned holes can weaken the system significantly.
Clear shop drawings, proper markings, and checks during erection help avoid surprises. Use of torque wrenches and testing for bolt tension during installation also improves long-term performance.
Material Selection and Long-Term Performance
Material selection directly influences the performance and life of a PEB. Choosing the right type of steel, coatings, and fasteners makes the difference between a building that lasts 15 years and one that performs well beyond 30 years.
Structural members are usually made from cold-formed or hot-rolled steel, with typical yield strengths ranging from 250 MPa to 345 MPa. Material selection depends on the structural demands and availability.
Weldability, ductility, and resistance to brittle fracture are also considered. In cold climates or seismically active zones, these factors become more important.
Roofing and Cladding
Roof and wall panels are usually made from Galvalume steel or pre-painted galvanized steel (PPGI). These materials resist corrosion and have decent thermal reflectivity. In highly corrosive environments—like chemical plants or coastal areas—special coatings or stainless steel options may be required.
Fasteners and Accessories
Using stainless steel or zinc-aluminum coated fasteners improves performance. Screws, washers, sealants, and trims—all play a role in weather protection. Neglecting these smaller parts often leads to leaks, rust patches, or insulation failures.
Conclusion
While PEBs offer speed and flexibility, their success relies on thoughtful design and precise execution. Every component, from the frame to the foundation, must work together to ensure the structure performs well over time. When loads are properly managed, connections are detailed clearly, and materials are chosen wisely, these buildings can achieve both strength and durability. With careful planning and attention on site, PEBs can stand the test of time.
