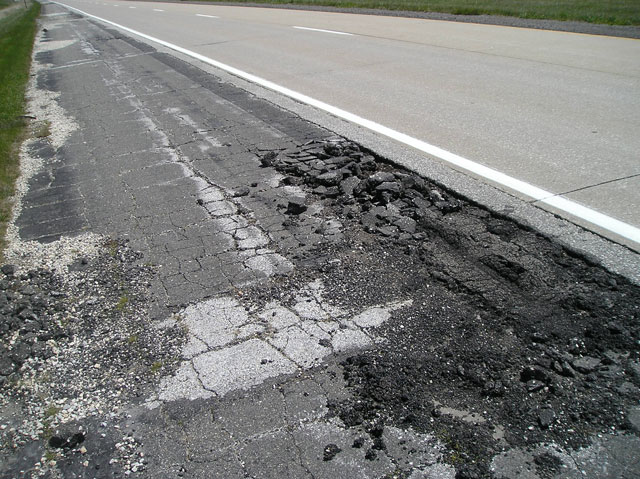

Road shoulder rebuilding involves the restoration or reconstruction of the edges of a roadway to ensure structural support, drainage efficiency, and overall safety. This process typically includes the removal of damaged or eroded materials, regrading for proper slope and runoff, and replacing or reinforcing the shoulder with suitable materials such as granular fill, asphalt, or concrete. Rebuilding road shoulders helps prevent edge drop-offs, supports vehicular stability, and enhances the longevity of the pavement by protecting it from water infiltration and edge failures.
Why road shoulder rebuilding is needed ?
- Edge drop-offs: A noticeable height difference between the pavement and shoulder.
- Erosion or washouts: Loss of material due to water runoff or poor drainage.
- Cracking or crumbling: Visible distress along the pavement edge and shoulder.
- Standing water: Poor drainage causing water to accumulate on or near the shoulder.
- Vehicle rutting or depressions: Repeated wheel paths creating grooves or low spots.
- Encroachment of vegetation: Overgrowth affecting shoulder function and visibility.
- Loose or displaced shoulder material: Gravel or soil spreading onto the roadway.
Different types of road shoulder rebuilding method
1. Gravel Shoulder Grading and Compaction
This is a basic and widely used method, especially on rural or low-volume roads. The process involves reshaping the shoulder to restore the original cross slope, which is essential for proper water drainage. Worn or eroded gravel is replaced with fresh material, and the entire surface is compacted using rollers to create a uniform, stable structure. This method is cost-effective and relatively quick but may require periodic maintenance in regions with heavy rainfall or frequent vehicle encroachment.
2. Full-Depth Rebuilding
Full-depth rebuilding is undertaken when the shoulder has experienced significant structural failure. It involves the complete excavation of the shoulder material, including the sub-base and sometimes even the subgrade. New layers of appropriate materials—such as granular sub-base, base course, and a surface layer—are laid and compacted. This method restores the full strength and support capacity of the shoulder, making it suitable for roads with high traffic volumes or long-term performance requirements. Though costlier than surface treatments, it offers extended durability and reliability.
3. Asphalt Shoulder Overlay
This method is ideal when the existing shoulder is still structurally sound but the surface is worn out or uneven. The process includes cleaning or milling the existing surface, followed by the application of a new asphalt layer. Asphalt overlays improve ride quality, enhance drainage, and protect the edge of the main pavement from cracking and water ingress. Commonly used on highways and arterial roads, this method helps maintain performance and appearance without the need for full reconstruction.
4. Stabilization with Additives
In areas where the in-situ shoulder material is weak or moisture-sensitive, chemical stabilization offers an effective solution. Stabilizing agents such as lime, cement, or bitumen emulsion are mixed with the existing soil or gravel to improve strength, water resistance, and overall durability. This process reduces erosion, dust formation, and rutting, making it well-suited for areas with clayey or silty soils. It also reduces the frequency of maintenance and enhances the shoulder’s load-bearing capacity.
5. Geosynthetic Reinforcement
Geosynthetics such as geotextiles, geogrids, or composite materials are increasingly being used to reinforce road shoulders, especially over weak or problematic subgrades. These materials are placed beneath the shoulder layers to improve load distribution, prevent intermixing of layers, and facilitate better drainage. Geosynthetic reinforcement significantly enhances the structural integrity and lifespan of shoulders while reducing settlement and deformation. It is particularly beneficial in flood-prone, marshy, or soft soil conditions.
6. Concrete Edge Strip Installation
Concrete edge strips are narrow bands of concrete constructed along the pavement edge to provide structural support and prevent edge cracking or raveling. This method is often used in urban areas, intersections, and roads with frequent turning or shoulder loading. The concrete strip holds the shoulder in place, enhances safety, and reduces maintenance needs by providing a durable transition between the pavement and shoulder material. It also helps retain the shoulder profile and prevents material migration.
Different type of equipments used for road shoulder rebuilding
1. Excavators
Excavators are vital machines in road shoulder rebuilding projects, especially for clearing debris, digging out damaged material, and preparing the subgrade. These large, tracked machines are equipped with a hydraulic arm and a bucket, allowing for deep excavation and precise digging in difficult terrains. Excavators are particularly useful when the road shoulder has been severely eroded or undermined, as they can quickly remove weak or unstable soil.
2. Backhoe Loaders
Backhoe loaders are multi-functional machines that combine a front loader for moving materials and a rear arm with a bucket for digging. These machines are often used for smaller-scale shoulder rebuilding tasks where maneuverability and flexibility are required. The front loader is ideal for scooping and transporting soil or gravel, while the rear digging arm is used for trenching and digging out damaged sections of the shoulder. Backhoe loaders are particularly helpful in projects where space is constrained or where only a limited amount of excavation is necessary.
3. Bulldozers
Bulldozers are heavy-duty machines with a wide blade mounted on the front, used to push large amounts of material such as soil, gravel, or rubble. In road shoulder rebuilding, bulldozers are used to rough-grade the surface, level out uneven areas, and clear debris from the shoulder. The dozer’s blade can be adjusted to perform various tasks such as spreading material across the shoulder and cutting or filling areas that need to be reshaped. They are particularly valuable when large-scale clearing or regrading of the shoulder area is necessary before finer grading can be performed.
4. Motor Graders
Motor graders are used to fine-tune the surface of the road shoulder, ensuring that it is leveled and has the correct cross slope, which is essential for proper drainage. These machines are equipped with a long adjustable blade that can be precisely angled and adjusted to achieve the desired profile. Motor graders are essential in the final stages of road shoulder rebuilding to create a smooth, even surface, and to ensure that the shoulder has the proper slope to prevent water accumulation and enhance the durability of the shoulder.
5. Skid Steer Loaders
Skid steer loaders are compact, highly maneuverable machines that are ideal for smaller or tight spaces where larger equipment may not fit. They are versatile machines capable of a range of tasks, including grading, excavation, and material handling. In road shoulder rebuilding, skid steer loaders are used for more localized tasks such as leveling soil, transporting materials, or performing fine grading near curbs and edges.
6. Vibratory Rollers (Single/Double Drum)
Vibratory rollers are heavy compaction machines used to compact road shoulder layers effectively. The single drum rollers are commonly used for base layer compaction, applying vertical pressure to densify granular materials. Double drum rollers are generally used for asphalt compaction, applying both vibratory and static forces to compress the material evenly. The vibratory action enhances the compaction process, ensuring that the material is densely packed, which is important for providing a stable and durable shoulder.
7. Pneumatic Tyred Rollers
Pneumatic tyred rollers, equipped with rubber tires instead of steel drums, apply pressure to compact and seal surface layers. These rollers are particularly effective in compacting bituminous layers or final asphalt finishes on the road shoulder. The kneading effect produced by the tires ensures a better inter-particle bond and a smooth surface. Pneumatic rollers are commonly used as finishing equipment after vibratory rollers to ensure that the top layer of the shoulder is properly sealed and free of air pockets, which enhances the longevity of the surface.
8. Soil Stabilizers / Reclaimers
Soil stabilizers or reclaimers are specialized machines used to improve the strength of subgrade materials. They work by mixing in additives such as lime, cement, or asphalt with the existing soil to create a stronger, more durable foundation for the shoulder. Soil stabilizers are particularly useful when the soil is weak or moisture-sensitive. By pulverizing the soil and blending it with stabilizing agents, reclaimers not only improve the material’s strength but also make use of existing materials, reducing costs and promoting sustainability in the rebuilding process.
9. Asphalt Pavers
Asphalt pavers are used to lay a smooth, even layer of hot mix asphalt (HMA) along the road shoulder. These machines spread and level the asphalt, ensuring that it is applied consistently across the width of the shoulder. The pavers are equipped with adjustable screeds that help in controlling the thickness and smoothness of the asphalt layer. Once the asphalt is laid, it is further compacted using rollers to create a dense, durable surface.
10. Concrete Pavers
Concrete pavers are used when concrete shoulders are required. These machines extrude or spread concrete, ensuring a uniform thickness and smooth finish. They also come equipped with vibrators and screeds to ensure that the concrete is properly compacted and finished. Concrete pavers are commonly used in areas where the shoulder needs to be exceptionally durable, such as in industrial zones or high-traffic roads.
Conclusion
Road shoulder rebuilding is essential for road safety, drainage, and pavement longevity. By using appropriate methods and equipment, damaged shoulders can be effectively restored to support traffic loads and prevent edge failures.
