Evaluating Concrete Strength Using Rebound Hammer Non-Destructive Testing

Rebound Hammer Testing (RHT), also known as Schmidt Hammer Testing, is a non-destructive testing (NDT) technique used to assess the surface hardness of concrete. Developed by Ernst Schmidt in 1948, this method offers a quick and effective approach to estimate the compressive strength of concrete in both new and existing structures. It plays an important role in quality control, structural evaluation, and maintenance planning across a wide range of construction applications.

Principle of Rebound Hammer Testing

The rebound hammer works by testing how hard the surface of concrete is. When a spring-loaded hammer hits the concrete, it measures how far it bounces back. A harder surface makes the hammer bounce back more, giving a higher value. A softer surface gives a lower value. This rebound value helps estimate the concrete’s strength.

Application of Rebound Hammer Testing (RHT) for Concrete

• Quality Control during Construction: Helps ensure consistency and uniformity of concrete strength across different batches or structural elements.
• In-situ Strength Estimation: Offers a quick alternative to core sampling, especially in inaccessible or sensitive locations.
• Condition Assessment of Existing Structures: Identifies areas of deterioration, carbonation, or inconsistencies in aging concrete.
• Verification of Curing Practices: Detects improperly cured surfaces, which may impact long-term durability.
• Comparative Testing: Facilitates relative strength comparisons across different areas of a structure.
• Supplementary Assessment Method: Supports other NDT techniques such as Ultrasonic Pulse Velocity (UPV) or core testing in structural health monitoring programs.

Advantages of Rebound Hammer Testing (RHT)

• Non-destructive, portable, and simple to use on-site.
• Provides immediate results with minimal training required.
• Useful for preliminary evaluations and rapid condition assessments.
• Allows multiple tests across wide areas for comparative analysis.
• Cost-effective method for screening concrete quality.
• Requires no elaborate setup or hazardous materials.
• Supports identification of areas requiring more detailed investigation.
• Adaptable for horizontal, vertical, and overhead surfaces with orientation correction.
• Can be used on both precast and cast-in-situ concrete elements.
• Offers high repeatability when standard procedures are followed.
• Encourages preventive maintenance by early detection of surface issues.
• Enhances understanding of surface hardness variations.
• Usable in high-rise, industrial, and infrastructure projects alike.

Prerequisites for Rebound Hammer Testing (RHT) of Concrete

• Ensure the concrete surface is clean, dry, and free from coatings.
• Confirm that the hammer is calibrated according to the manufacturer’s instructions.
• Remove loose particles, plaster, or paint that may affect test accuracy.
• Assess and record the test surface’s orientation (horizontal, upward, or downward).
• Prepare documentation outlining testing locations and environmental conditions.
• Ensure operators are familiar with ASTM C805 / IS 13311 (Part 2) standards.
• Implement a safety plan if working at height or in operational areas.
• Conduct preliminary trials to understand variability before formal testing.
• Use protective gear as required in construction zones.

How Rebound Hammer Testing (RHT) Works?

Rebound Hammer Testing determines the surface hardness of concrete, which correlates with compressive strength. The testing procedure involves the following steps:

1. Surface Preparation: The surface to be tested must be cleaned and smoothed to remove dust, laitance, or coatings. Rough or soft patches should be avoided.

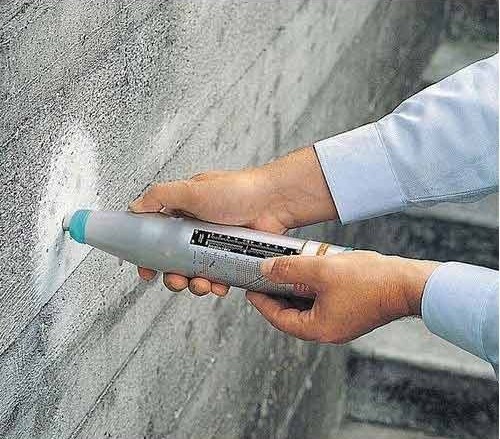

2. Placing the Hammer: The rebound hammer is positioned perpendicular to the concrete surface. Its orientation must be noted, as gravity influences rebound measurements.

3. Impact and Reading: The plunger is pressed against the concrete until the hammer mechanism releases and the spring-driven mass impacts the surface. The rebound distance is measured on a scale and recorded as the rebound number.

4. Multiple Readings: At least 10 valid readings are taken in a test area. Extreme values are discarded, and the average is calculated for reliable interpretation.

5. Data Interpretation: The average rebound number is compared with established calibration curves, either generic (from manufacturers) or site-specific (based on core tests).

Equipments, Tools and Softwares Required for Rebound Hammer Testing (RHT)

• Rebound Hammer Device: Standard type with impact energy or special models for low-strength concrete.
• Calibration Anvil: For periodic accuracy checks.
• Measuring Tape and Chalk: For grid marking and positioning.
• Surface Preparation Tools: Wire brush, grinder (if needed) for cleaning the surface.
• Rebound Number Log Sheet: Manual or digital recording system.
• Concrete Strength Correlation Chart: From manufacturer or site-specific data.
• Moisture Meter (optional): To assess surface moisture levels.
• Statistical Software (optional): For analyzing test results and filtering outliers.


Factors Affecting the Results of Rebound Hammer Testing (RHT)

• Surface Texture and Condition: Rough or deteriorated surfaces lower rebound numbers; carbonated layers may falsely elevate results.
• Moisture Content: Wet concrete absorbs more impact energy, reducing rebound values.
• Age of Concrete: Compressive strength increases with age, but rebound may not follow linearly.
• Type of Aggregate: Harder aggregates yield higher readings than softer ones.
• Testing Orientation: Downward tests usually yield lower results than horizontal impacts due to gravity effects.
• Temperature and Humidity: Environmental conditions may influence rebound readings indirectly through surface properties.

Calibration and Standardization for RHT

To get accurate results, the rebound hammer should be calibrated regularly. For important tests, it’s best to do site-specific calibration using core samples and lab-tested compressive strengths. By comparing rebound numbers with known strengths, you can create a custom curve that matches local materials. This is useful when standard curves don’t reflect the actual conditions on site.

Standards guiding RHT procedures include:

• ASTM C805 / C805M: Standard Test Method for Rebound Number of Hardened Concrete.
• IS 13311 (Part 2): Method of Non-destructive Testing of Concrete – Rebound Hammer.
• BS EN 12504-2: Testing Concrete in Structures – Determination of Rebound Number.

Conclusion

Rebound Hammer Testing (RHT) is a practical and efficient non-destructive method for assessing the surface hardness and estimating the compressive strength of concrete. Its simplicity, speed, and affordability make it a valuable method in the construction industry, particularly for quality control, condition surveys, and comparative analysis.

However, for dependable and useful results, it is important to conduct the testing under the supervision of a qualified service provider with expertise in NDT. When used in combination with other testing methods, rebound hammer testing helps ensure informed decision-making in both new construction and maintenance of existing structures.
