Galling is one of those failure modes that announces itself loudly and expensively. A valve stem that seizes mid-operation, a threaded fastener that welds itself together during torquing, a sliding contact surface that tears and transfers material after relatively few cycles. The damage is often irreversible. The affected components need replacing, and in process-critical applications, the downtime that follows a galling event carries costs well beyond the parts themselves.
The underlying mechanism is adhesive wear. When two metal surfaces slide against each other under sufficient contact pressure, surface asperities weld momentarily at the microscopic level. If the material doesn’t have adequate resistance to that adhesion, those micro-welds tear during relative motion, pulling material from one surface and transferring or depositing it on the other. The result is surface damage that ranges from roughening and scoring to complete seizure.
Material selection is the most reliable long-term solution. Lubricants help, surface coatings extend service life, and design changes can reduce contact stress, but when the operating conditions are severe, the temperatures are elevated, or lubrication is impractical, the alloy itself has to carry the resistance to galling. Understanding which materials perform well and why is the foundation of a durable solution.
What Makes an Alloy Resistant to Galling
Not all metals gall equally. The tendency to gall is influenced by several material characteristics working together.
Crystal structure plays a meaningful role. Face-centered cubic (FCC) metals with multiple active slip systems, such as austenitic stainless steels, tend to work-harden rapidly during sliding contact, which can actually promote adhesion rather than resist it. Hexagonal close-packed (HCP) metals have fewer slip systems, lower ductility at the contact surface, and generally lower galling tendency, which is part of why cobalt-based alloys perform so well in galling-prone applications.
Work hardening rate affects galling behavior significantly. A material that work-hardens quickly at the contact surface develops a harder, more protective surface layer under loading. This is one of the mechanisms behind the galling resistance of high-manganese austenitic alloys and certain cobalt-chromium grades.
Hardness differential between mating surfaces matters too. Pairing two surfaces of similar hardness, particularly in the mid-hardness range, produces worse galling outcomes than pairing a hard surface against a softer one or using dissimilar alloy families altogether. This is why engineering guidance frequently recommends dissimilar material pairings in sliding contact applications.
Oxide film stability and chemical compatibility at the interface round out the picture. Alloys that form stable, adherent oxide films tend to resist galling better than those whose surface films break down under contact stress and heat.
Cobalt-Based Alloys: The Benchmark for Severe Service
When galling resistance is the primary design requirement, cobalt-chromium alloys consistently appear at the top of the material selection list. Grades such as Stellite 6, Stellite 12, and Stellite 21 have been the reference materials for severe galling applications across valve seats, pump wear rings, bearing surfaces, and downhole tool components for decades.
The galling resistance of cobalt-chromium alloys derives from several concurrent mechanisms. The HCP crystal structure of the cobalt matrix limits dislocation mobility, reducing the ductile adhesion that drives galling. The carbide phases dispersed through the microstructure, primarily chromium carbides and tungsten carbides depending on the grade, provide hard particles that interrupt and disrupt adhesive contact. The chromium content supports a stable oxide layer that reduces direct metal-to-metal contact under moderate conditions.
Stellite 6 is the most widely used grade, offering a balance of galling resistance, corrosion resistance, and moderate hardness (approximately 36 to 45 HRC depending on the manufacturing method). It is commonly applied as a weld overlay on valve seats and wear surfaces rather than as a wrought component, which allows the galling-resistant surface to be combined with a tougher, more machinable substrate. Stellite 21 trades some hardness for improved impact resistance and better performance at elevated temperatures, making it the preferred grade for applications with thermal cycling or shock loading.
The practical limitations of cobalt alloys are cost and machinability. These are expensive materials, and their hardness and carbide content make them challenging to machine without appropriate tooling and process controls. For components where the entire part needs galling resistance rather than just a surface layer, the economics require careful consideration.
Nickel-Based Alloys: Versatility Under Corrosive Conditions
Nickel-based alloys occupy an important niche in galling resistance applications where corrosion is an equally significant concern alongside wear. Grades such as Hastelloy C-276, Inconel 625, and various proprietary nickel-chromium-molybdenum compositions offer meaningful galling resistance combined with exceptional resistance to aggressive chemical environments that would compromise cobalt or iron-based materials.
The galling resistance of nickel alloys is generally lower than that of cobalt grades under dry or high-load conditions, but in the context of their typical application environments, corrosive process streams, elevated temperatures, and chemically aggressive media, the combination of properties is often the right engineering answer. Pump impellers, agitator shafts, valve trim in chemical service, and heat exchanger components are common applications where nickel alloy selection reflects both the corrosion and wear requirements simultaneously.
Work-hardening nickel alloys, particularly those with high manganese or nitrogen additions, show improved galling resistance compared to standard grades. The rapid surface hardening under contact stress provides a degree of protection that standard nickel alloys don’t offer. This property also benefits austenitic stainless steel grades modified with nitrogen, a point addressed below.
Iron-Based and Stainless Options: Understanding the Limits
Standard austenitic stainless steels, the 304 and 316 grades that appear throughout industrial equipment, are notoriously poor performers in galling-prone applications. Their FCC crystal structure, high ductility, and relatively unstable surface oxide film make them among the most galling-susceptible engineering materials. Pairing two 316 stainless steel components in sliding contact without lubrication is a reliable way to produce a galling failure in short order.
That said, the stainless steel family is not uniformly poor. Several modified grades and specialty compositions offer substantially improved galling resistance while retaining the corrosion resistance that makes stainless steel attractive in the first place.
Nitronic 60 (UNS S21800) is the most widely cited iron-based alloy developed specifically for galling resistance. Its composition includes elevated silicon and manganese alongside nitrogen, producing a work-hardening response at the contact surface that interrupts the adhesive wear mechanism. Nitronic 60 can be used in metal-to-metal contact against itself, which is unusual among stainless alloys and practically significant for applications where both mating components need corrosion resistance. Its galling threshold stress values are substantially higher than 304 or 316 stainless, and it maintains those properties across a reasonable temperature range.
Duplex stainless steels, with their mixed austenitic-ferritic microstructure, offer improved galling resistance compared to standard austenitic grades. The ferritic phase interrupts the continuous austenitic matrix, reducing the ductile adhesion mechanism. Grades like 2205 and 2507 are used in pump and valve applications where improved corrosion resistance over standard stainless is needed alongside better wear behavior.
Precipitation-hardening stainless grades such as 17-4 PH and 15-5 PH achieve hardness levels through aging treatments that place them considerably above standard austenitic grades on the galling resistance scale. They’re not the first choice for severe galling conditions, but for moderate sliding contact applications where some corrosion resistance is also needed, their higher hardness provides a meaningful improvement over 304 or 316.
Specialty and Proprietary Anti-Galling Alloys
Beyond the established grade families, a number of specialty and proprietary alloy compositions have been developed specifically to address galling in demanding applications. These are particularly relevant when standard grades don’t fully meet the combination of mechanical, corrosion, and galling requirements for a specific application.

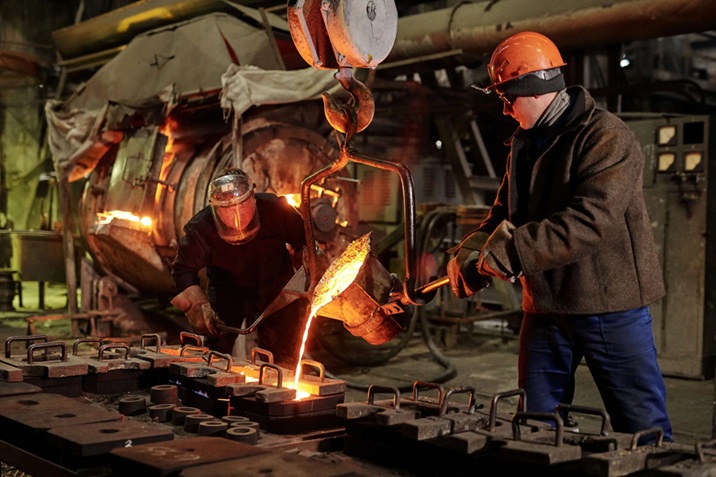

The range of non galling alloys developed for industrial service covers compositions optimized for specific operating environments, from cryogenic valve applications to high-temperature process equipment, with microstructures engineered to maximize galling resistance across the relevant contact conditions. Cast versions of these alloys are particularly valuable for complex component geometries where wrought forms are impractical or where section sizes make consistent heat treatment of standard grades difficult.
Bismuth-modified alloys represent one direction of specialty development, where small additions of bismuth reduce the tendency for adhesive micro-welding at contact surfaces. Copper-containing alloys exploit the natural lubricity of copper and its tendency to form softer transfer films. Boride-containing compositions take a different approach, distributing extremely hard boride phases through the microstructure to interrupt contact and provide abrasion resistance alongside galling protection.
Selecting the Right Alloy for the Application
Material selection for galling resistance works best when it starts with a clear characterization of the operating conditions rather than a default to a familiar grade.
Contact stress levels determine how much galling resistance the material actually needs. Low-stress sliding contact applications, such as guide rails or covers, can often be solved with surface hardening of standard alloys or appropriate coatings. High-stress applications, valve seats under high differential pressure, heavily loaded threaded connections, or pump wear rings in abrasive service, demand materials where galling resistance is built into the bulk composition.
Temperature range affects both the alloy’s mechanical properties and its surface oxide behavior. Cobalt grades retain their galling resistance at elevated temperatures better than most alternatives. Nickel alloys are preferred where both high temperature and aggressive corrosion are present.
Corrosion environment shapes the shortlist before wear properties are even evaluated. In clean, dry, or oil-lubricated service, cobalt overlays or iron-based specialty grades cover most requirements. In corrosive process streams, the corrosion resistance must be established first, and galling resistance then evaluated within the materials that meet that primary requirement.
Mating material also matters. Even a highly galling-resistant alloy can underperform if paired against a material of similar composition and hardness. Dissimilar material pairings, hard against softer, or two different alloy families, generally outperform like-against-like combinations.
Getting the material right from the start is considerably less expensive than addressing a galling failure after the fact. The component cost, the remediation work, and the operational disruption of a seized valve or a stripped threaded connection in service add up quickly. For applications where sliding contact under load is part of the design, the material selection conversation is worth having thoroughly and early.
