Reinforced concrete structures contain steel reinforcement that provides tensile strength and helps control cracking and structural deformation. Over time, however, the reinforcement may become difficult to locate because it is embedded within the concrete. Accurate information about the position, spacing and concrete cover of reinforcement is important when assessing existing structures, planning repairs, drilling or coring, and investigating corrosion-related deterioration.
Cover meter testing is a non-destructive testing method used to locate reinforcement bars within concrete and estimate the depth of concrete cover over the bars. The technique can be performed without breaking the concrete surface, making it useful for structural investigations where preservation of the existing structure is required.
What Is a Cover Meter?
A cover meter is an electronic instrument designed to detect metallic reinforcement embedded in concrete. Most modern cover meters operate using electromagnetic principles. The instrument generates an electromagnetic field and detects changes caused by the presence of steel reinforcement.
The equipment can generally provide information such as:
- Location of reinforcement bars
- Approximate concrete cover
- Reinforcement spacing
- Bar arrangement in accessible areas
- Identification of reinforcement direction
- Preliminary assessment of reinforcement layout
Some advanced instruments can also estimate bar diameter, although accuracy depends on concrete properties, bar spacing, cover depth, instrument specifications and the presence of nearby reinforcement.
Cover meter testing is therefore useful for preparing reinforcement layouts without exposing the steel through chipping or drilling.
Why Rebar Detection Is Important
Knowing where reinforcement is located is important during both investigation and construction activities. Drilling or cutting into a reinforced concrete member without knowing the reinforcement arrangement can damage bars and affect structural performance.
Rebar detection is commonly required before:
- Core cutting
- Concrete drilling
- Anchoring
- Installation of mechanical or electrical services
- Structural strengthening
- Concrete repair
- Demolition planning
- Structural condition assessment
- Corrosion investigation
- Verification of reinforcement drawings
In older buildings, original reinforcement drawings may be unavailable or may not accurately represent the reinforcement installed during construction. Cover meter testing can provide field information about the existing reinforcement arrangement.
Applications of Cover Meter Testing
- Buildings: Verify reinforcement location and concrete cover before drilling, repair or strengthening work.
- Bridges: Assess reinforcement location and cover in bridge decks, piers, girders and other concrete components.
- Parking Structures: Support assessment of reinforcement corrosion and planning of repair works.
- Industrial Structures: Scan foundations, slabs, equipment bases and structural members before modifications or installations.
- Water-Retaining Structures: Determine reinforcement arrangement and concrete cover in tanks and similar structures.
- Existing Structures: Verify reinforcement details where drawings or construction records are incomplete or unavailable.
Advantages of Cover Meter Testing
Cover meter testing offers several advantages:
- Non-destructive investigation method
- No need to expose reinforcement for routine scanning
- Rapid field measurements
- Useful for locating reinforcement before drilling
- Helps estimate concrete cover
- Can assist in mapping reinforcement spacing
- Suitable for condition surveys
- Can supplement existing structural drawings
- Limited surface preparation is generally required
- Useful for planning repair and strengthening work
Principle of Cover Meter Testing
The operation of a cover meter is based on the interaction between an electromagnetic field and steel reinforcement.
When the instrument is moved over a concrete surface, the electromagnetic field is influenced by the presence of embedded steel. The instrument detects this change and uses the response to estimate the location and depth of the reinforcement.
The basic sequence is:
Instrument generates electromagnetic field → reinforcement influences the field → sensor detects the response → instrument processes the signal → reinforcement location and cover are estimated.
The exact technology varies between instruments. Different manufacturers may use electromagnetic induction, pulse induction or related sensing techniques.
Because the method relies on the interaction between the instrument and embedded metal, test results can be affected by reinforcement congestion, bar diameter, cover depth, adjacent steel and other metallic objects.

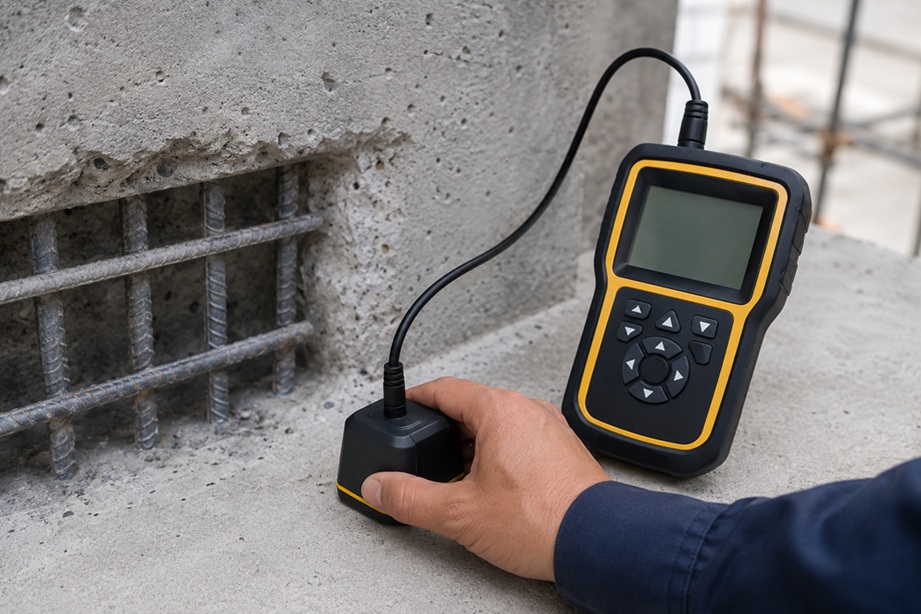

Equipments Used
A typical cover meter consists of:
- Control unit – Processes the detected signal and displays measurements.
- Search probe or sensor – Detects the electromagnetic response from reinforcement.
- Display – Shows estimated cover depth, bar position or related measurements.
- Scanning mechanism – Some instruments provide wheels or position tracking for systematic scanning.
- Data storage – Advanced equipment may record measurements for later analysis.
- Rechargeable battery – Provides power for field operation.
Modern instruments may include digital mapping, graphical displays, data logging and connectivity for transferring test results.
Procedure for Cover Meter Testing
- Review Available Information: Check structural and reinforcement drawings, repair records and previous inspection reports to understand the expected reinforcement layout.
- Inspect the Concrete Surface: Check for cracks, spalling, exposed reinforcement, coatings, plaster and surface irregularities before scanning.
- Prepare the Instrument: Check the battery, probe and instrument settings. Carry out calibration or reference checks as recommended by the manufacturer.
- Establish a Test Grid: Mark reference lines or a grid on the concrete surface to ensure systematic scanning and accurate recording.

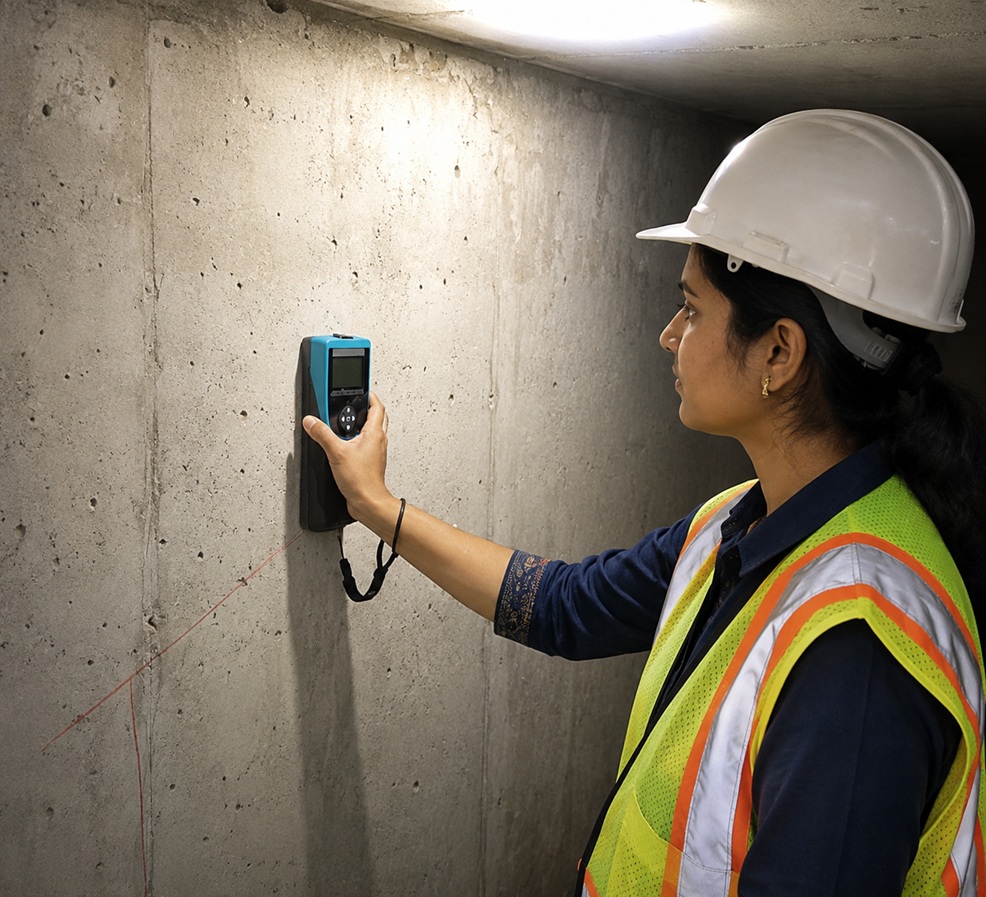

- Scan the Surface: Move the probe slowly across the surface. Changes in the instrument response indicate the presence of reinforcement.

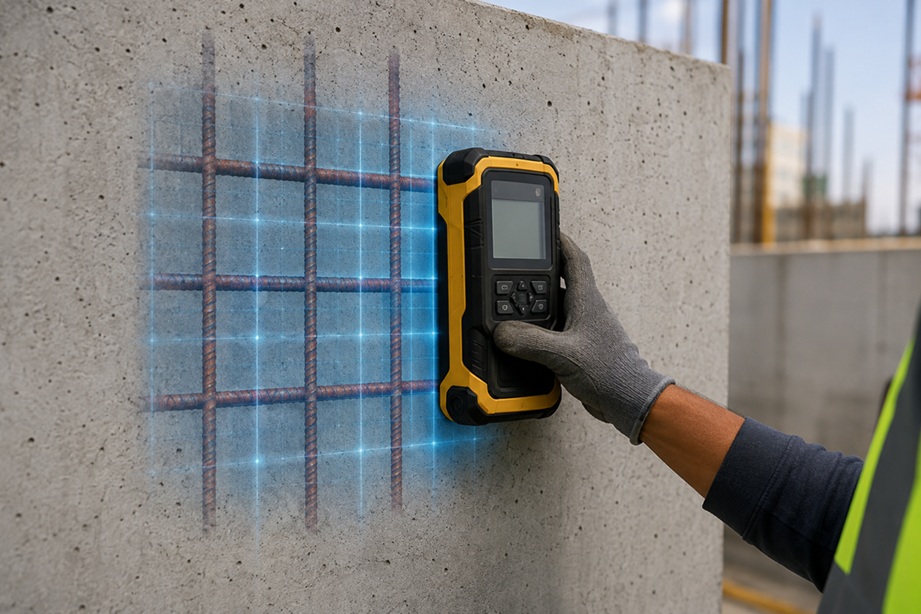

- Locate Reinforcement: Mark the detected bar positions and determine reinforcement direction and spacing by scanning in different directions.
- Measure Concrete Cover: Position the probe over the centreline of each detected bar to estimate the distance from the concrete surface to the reinforcement.
- Record Results: Document the test location, bar spacing, estimated cover, reinforcement direction, instrument details, surface condition and relevant observations.
Factors Affecting Test Accuracy
Cover meter measurements should not be treated as exact under all conditions. Several factors influence the accuracy of reinforcement detection.
Reinforcement Congestion
Closely spaced reinforcement can produce overlapping electromagnetic responses. This can make it difficult to identify individual bars accurately.
Bar Diameter
The diameter of the reinforcement influences the detected signal. Larger bars generally produce a stronger response than smaller bars.
Concrete Cover
Detection becomes more difficult as the distance between the surface and reinforcement increases. Each instrument has a practical detection range.
Adjacent Reinforcement
A nearby bar can affect the signal generated by another bar. This is particularly relevant in heavily reinforced beams, columns and structural joints.
Metallic Objects
Metal conduits, pipes, embedded plates, ties and other metallic components can interfere with readings.
Concrete Composition
Concrete containing certain aggregates or other materials may affect instrument response. The presence of moisture and variations in material properties can also influence measurements depending on the equipment used.
Surface Conditions
Tiles, plaster, coatings and other surface materials increase the effective distance between the sensor and reinforcement. Their thickness should be considered when interpreting measurements.
Detecting Reinforcement in Congested Areas
Highly reinforced structural members require careful scanning. Columns, beam-column joints, transfer beams and shear walls may contain several layers of reinforcement.
In such areas, the operator should scan from different directions and interpret the results together with available structural drawings.
Where the reinforcement arrangement cannot be established reliably using a cover meter alone, other techniques such as Ground Penetrating Radar (GPR) or complementary investigation methods may be considered.

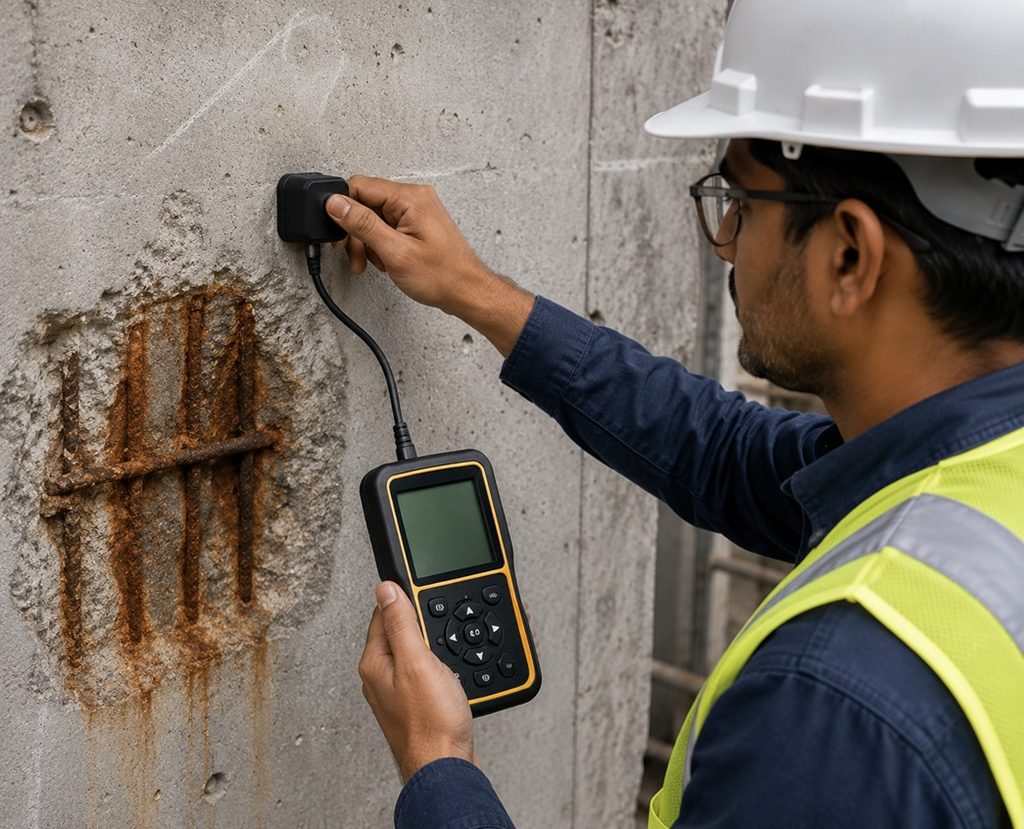

Cover Meter Testing for Corrosion Assessment
Cover meter testing does not directly measure reinforcement corrosion. Its primary purpose is to locate reinforcement and estimate cover.
However, cover information is relevant to corrosion investigations because concrete cover influences the protection provided to reinforcement against environmental exposure.
For a comprehensive corrosion assessment, cover meter testing may be combined with methods such as:
- Half-cell potential measurement
- Concrete electrical resistivity
- Carbonation depth measurement
- Chloride analysis
- Visual inspection
- Concrete sampling
- Core examination
The results from these methods can be interpreted together to understand the condition of reinforced concrete.
Cover Meter Testing Before Core Cutting
One of the important applications of reinforcement detection is selecting safe locations for concrete coring.
Before extracting a core, the proposed location can be scanned to identify reinforcement. The core position can then be selected to minimise the possibility of cutting reinforcement, subject to structural and investigation requirements.
This approach is particularly useful when cores are required for:
- Concrete strength assessment
- Petrographic examination
- Chemical analysis
- Carbonation assessment
- Chloride testing
- Investigation of suspected deterioration
The decision on core locations should be made by the responsible structural or investigation professional because avoiding reinforcement is not the only consideration in selecting a representative test location.
Cover Meter Testing Before Drilling and Anchoring
Drilling into reinforced concrete without knowing the reinforcement arrangement can damage reinforcement or create an unintended structural condition.
Cover meter scanning can help identify suitable drilling locations for:
- Mechanical anchors
- Chemical anchors
- Service supports
- Handrails
- Cable trays
- Pipe supports
- Equipment fixings
However, detection limitations should be considered, particularly where reinforcement is congested or embedded at greater depth.
Limitations of Cover Meter Testing
The method also has limitations.
It may become difficult to distinguish individual bars where reinforcement is closely spaced. Measurement accuracy can decrease at greater cover depths. Nearby reinforcement and embedded metallic components can influence the readings.
Bar diameter estimation may also be less reliable where reinforcement is congested or multiple layers are present.
Cover meter testing should therefore be considered as an investigation technique rather than a substitute for engineering judgement.
density and expected depth.
Combining Cover Meter With Other NDT Methods
No single NDT technique can provide complete information about an existing concrete structure.
A structural investigation may combine cover meter testing with:
Visual inspection + Rebound Hammer + UPV + Cover Meter + Half-Cell Potential + Resistivity + Carbonation Testing
Each method provides different information. Rebound hammer testing can provide an indication related to surface hardness, while UPV can help assess concrete uniformity. Cover meter testing identifies reinforcement location and cover, while corrosion-related techniques provide information about reinforcement corrosion risk.
Combining the results can provide a more useful basis for structural condition assessment.
Conclusion
Cover meter testing is an important non-destructive technique for detecting reinforcement embedded in concrete and estimating concrete cover. It can support structural condition assessments, repair planning, strengthening projects and safe drilling or coring operations.
The reliability of the results depends on instrument capability, operator experience, reinforcement arrangement, concrete cover and site conditions. In heavily reinforced or complex structures, cover meter testing may need to be supplemented by GPR or other investigation techniques.
