A double-skin facade is a type of building facade that consists of two layers of material with a space between them. The outer layer protects the building from the weather, while the inner layer helps control indoor temperatures. The gap between the two layers improves thermal insulation and allows natural ventilation, reducing the need for mechanical cooling or heating. This type of facade is commonly used in energy-efficient buildings, offering benefits like better air quality, enhanced acoustic insulation, and reduced energy consumption.
Where are they used?
- Residential Buildings
- High-Rise Buildings
- Government Buildings
- Institutional Buildings
- Hotels
- Commercial Spaces
- Sustainable Buildings
- Urban Development Projects
These facades are increasingly popular in regions with high environmental standards or where the focus is on achieving LEED or BREEAM certification.
The components of a double-skin facade include:
- Outer Skin: The external layer, usually made of glass, metal, or composite materials, designed to protect the building from weather elements.
- Air Cavity: The space between the two skins, which acts as an insulating layer and helps with thermal regulation.
- Inner Skin: The internal layer, often a solid wall or a glass facade, which separates the building’s interior from the air cavity.
- Ventilation System: A mechanism to regulate airflow between the two skins for passive cooling and ventilation.
- Shading Elements: Elements like blinds, louvers, or shading panels integrated into the air cavity to control solar heat gain.
- Structural Frame: The framework that supports both the outer and inner skins and holds them in place.
- Sealant and Gaskets: Materials used to seal joints between the skins, ensuring airtightness and preventing water infiltration.
- Solar Panels or Glazing: Optional components that can be integrated into the outer skin for energy efficiency, often used in sustainable designs.
Advantages of double-skin facade
- Improves thermal insulation and reduces energy costs.
- Enhances soundproofing, minimizing external noise.
- Controls solar heat gain, reducing cooling needs.
- Promotes natural ventilation for better temperature control.
- Stabilizes indoor temperatures and reduces drafts.
- Reduces carbon footprint through energy efficiency.
- Protects interiors from harmful UV rays.
- Provides privacy while allowing natural light.
- Prevents condensation, improving air quality.
- Offers a flexible design, allowing customization of materials.
- Contribute to green building certifications, such as LEED.
- Improves the building’s resistance to harsh climates.
- Allows for easier integration of renewable energy solutions, like solar panels.
- Reduce the need for artificial lighting by optimizing natural light flow.
- Can be used for both new and retrofitted buildings.
Different types of Ventilated Double-Skin Facade
Ventilated Double-Skin Facade
A ventilated double-skin facade consists of two layers of glazing, with an air cavity in between that is naturally ventilated. This cavity allows outside air to flow in, helping to cool the building by reducing solar heat gain. The design aids in improving energy efficiency by creating a buffer between the exterior and the interior, preventing excessive heating during the summer and insulating the building in the winter. Ventilated facades are ideal for buildings in warm climates or areas with significant temperature fluctuations, as they reduce the need for mechanical cooling and heating systems. The ventilation system helps improve indoor air quality and reduces energy consumption, which is particularly beneficial for commercial buildings.
Closed Double-Skin Facade
The closed double-skin facade is made up of two glass layers with a sealed cavity, providing excellent insulation. This design significantly reduces heat transfer between the exterior and interior of the building. The sealed cavity acts as a thermal barrier, improving the building’s overall energy efficiency and maintaining a comfortable internal climate. Closed facades are most effective in colder climates, where insulation and heat retention are essential. They are commonly used in office buildings and high-rise structures where energy efficiency and temperature control are a priority, as the system prevents heat loss during winter and reduces the need for air conditioning in the summer.
Hybrid Double-Skin Facade
Hybrid double-skin facades combine different types of systems within the same facade to address specific performance needs. For instance, a hybrid system might integrate a ventilated facade with sun protection elements to optimize energy efficiency while maintaining a comfortable indoor environment. Hybrid facades can adapt to varying conditions, responding to both temperature fluctuations and solar exposure. These facades are used in large commercial or mixed-use developments where different building areas have diverse needs. By combining various systems, hybrid facades can achieve a balance between energy conservation, thermal comfort, and natural lighting.

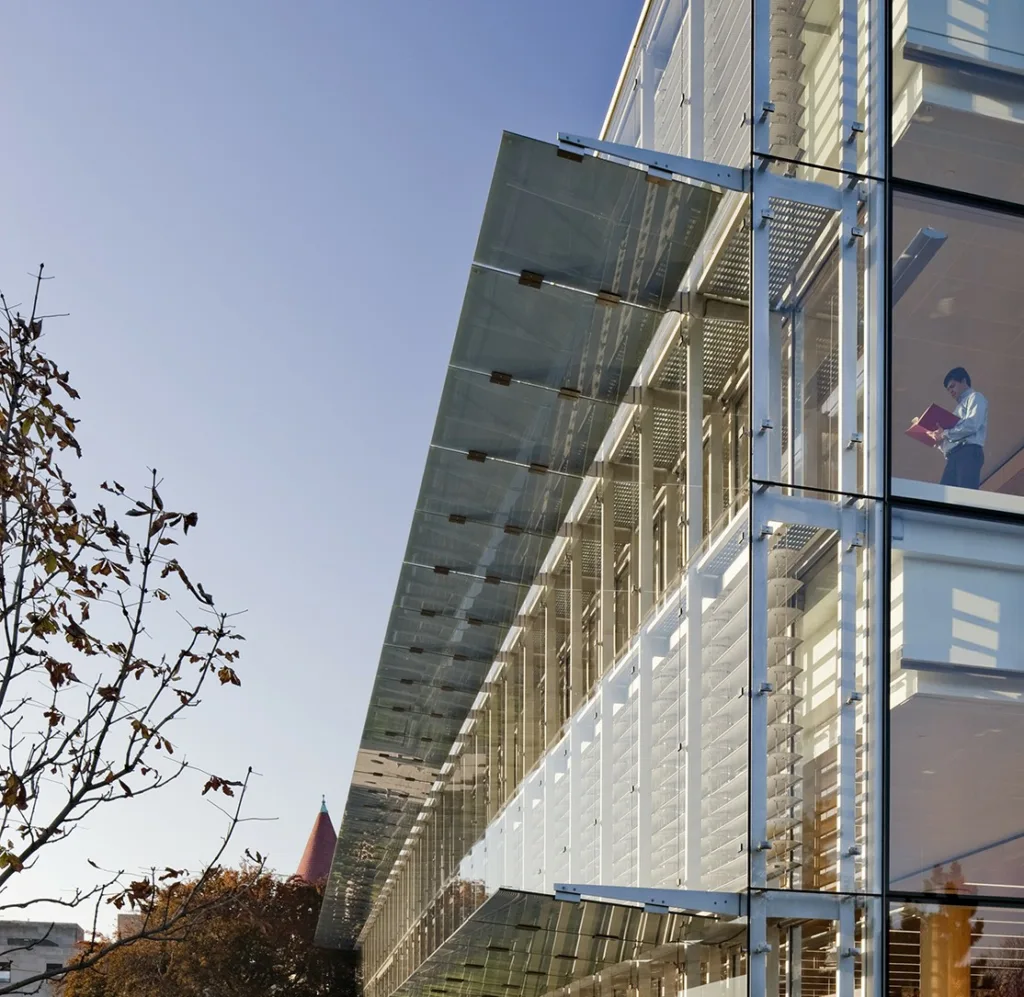

Buffer Double-Skin Facade
A buffer double-skin facade creates an insulating buffer zone between the building’s interior and the external environment. The cavity between the two glass layers prevents heat loss during winter and reduces heat gain during the summer. In addition to providing thermal insulation, buffer facades also offer sound insulation, making them effective in noisy urban areas. They help reduce energy consumption by regulating the indoor temperature, improving both thermal comfort and energy performance. Buffer facades are commonly used in buildings situated in busy city environments or areas with high noise pollution, such as along highways or near train stations.
Active Double-Skin Facade
Active double-skin facades feature dynamic systems like automated windows, shading devices, or vents that respond to external weather conditions. These elements adjust automatically to optimize temperature, airflow, and sunlight entering the building, offering real-time environmental control. Active facades are designed to enhance energy efficiency by adjusting based on the internal and external climate. They are particularly suitable for smart buildings or commercial spaces where precise control over indoor conditions is necessary. These facades can help reduce energy consumption by adjusting to the time of day or changing weather, improving overall comfort and reducing the need for artificial cooling or heating.
Thermally Active Double-Skin Facade
Thermally active double-skin facades incorporate heating or cooling elements, such as water pipes or radiators, within the cavity between the glass layers. These systems allow heat to be absorbed or distributed, helping to regulate the internal temperature of the building. This type of facade is particularly useful in climates with extreme temperature variations. The thermal mass of the facade absorbs excess heat during the day and releases it at night, helping to maintain a stable indoor climate. Thermally active facades are often used in energy-efficient buildings, especially those that aim to minimize mechanical heating and cooling needs. They offer both thermal comfort and energy savings, particularly in buildings with large glass facades.
Conclusion
Double-skin facades are innovative solutions for enhancing building performance, offering improved energy efficiency, thermal regulation, and acoustic insulation. Their adaptability to various architectural designs and climates highlights their importance in modern construction, making them a valuable choice for energy-conscious and performance-driven building projects.
