Thermally insulated GFRP (Glass Fiber Reinforced Polymer) panels are composite building materials designed to serve as external cladding systems while providing thermal insulation. These panels consist of a core insulation material sandwiched between two layers of GFRP skins. The outer skin offers protection against environmental factors, while the inner skin adds structural support. These panels combine insulation and facade cladding in a single prefabricated unit, making them effective for enhancing building energy efficiency, durability, and aesthetics.
Manufacturing Method:
The production of thermally insulated GFRP panels involves several key steps:
- Preparation of GFRP Skins: Glass fibers are combined with a polymer resin to create strong, weather-resistant sheets. These sheets are produced via processes such as pultrusion or molding.
- Insulation Core Fabrication: The insulation core is formed from rigid foam materials like PU, PIR, or EPS. These are manufactured to specified thickness and density to meet thermal performance requirements.
- Panel Assembly: The insulation core is sandwiched between two GFRP skins and bonded using adhesives under pressure to ensure strong, uniform adhesion.
- Curing and Finishing: The assembled panels are cured for stability, trimmed to size, and may receive surface treatments to improve UV resistance, color stability, and weather resistance.
Advantages of Thermally Insulated GFRP Panels
- Thermal Efficiency: The insulation core reduces heat transfer, improving energy efficiency and lowering heating and cooling costs.
- Lightweight: Compared to conventional cladding materials, GFRP panels impose less structural load.
- Durability: GFRP resists corrosion, moisture, and UV radiation, ensuring a long service life.
- Weather Resistance: Panels effectively protect against wind, rain, snow, and other weather conditions.
- Fast Installation: Prefabrication and lightweight design speed up on-site assembly.
- Low Maintenance: GFRP surfaces require minimal upkeep compared to traditional materials.
- Fire Resistance: Many panels are engineered to meet fire safety standards.
- Acoustic Insulation: The core layer helps reduce noise transmission.
- Design Flexibility: Panels can be customized in shape, size, color, and texture.
- Chemical Resistance: Suitable for environments with exposure to chemicals or pollutants.
- Compatibility: Can be integrated with ventilated façade systems and diverse structural frameworks.
- Sustainability: Improved energy efficiency contributes to reduced operational carbon emissions.
Applications of Thermally Insulated GFRP Panels
Thermally insulated GFRP panels are used across various sectors:
- Commercial Buildings: Offices, hotels, shopping centers.
- Residential Complexes: Apartments, modular housing, single-family homes.
- Public Facilities: Schools, hospitals, government buildings.
- Industrial Structures: Factories, warehouses, clean rooms.
- Transportation Hubs: Airports, train stations, bus terminals.
- Retrofit Projects: Upgrading existing buildings for improved thermal performance.
Types of Thermally Insulated GFRP Panels
1. Flat GFRP Insulated Panels
Flat GFRP panels with thermal insulation are widely used in applications requiring smooth and hygienic surfaces, such as walls, ceilings, and partitions in cleanrooms, food processing areas, and healthcare facilities. They provide excellent thermal performance while ensuring easy maintenance and high durability.
2. Corrugated GFRP Insulated Panels
Corrugated insulated panels are primarily used for roofing and exterior cladding where both thermal insulation and mechanical strength are required. The corrugated design enhances the structural integrity of the panels, making them suitable for industrial buildings, warehouses, and agricultural facilities.
3. Sandwich GFRP Panels
Sandwich GFRP panels consist of two outer GFRP skins and an insulating core made from materials like Polyurethane Foam (PUF), Polyisocyanurate (PIR), Extruded Polystyrene (XPS), or Expanded Polystyrene (EPS). These panels offer superior thermal insulation and are commonly used in cold rooms, refrigeration units, and temperature-controlled environments in industries like food storage and pharmaceuticals.
4. Architectural GFRP Insulated Panels

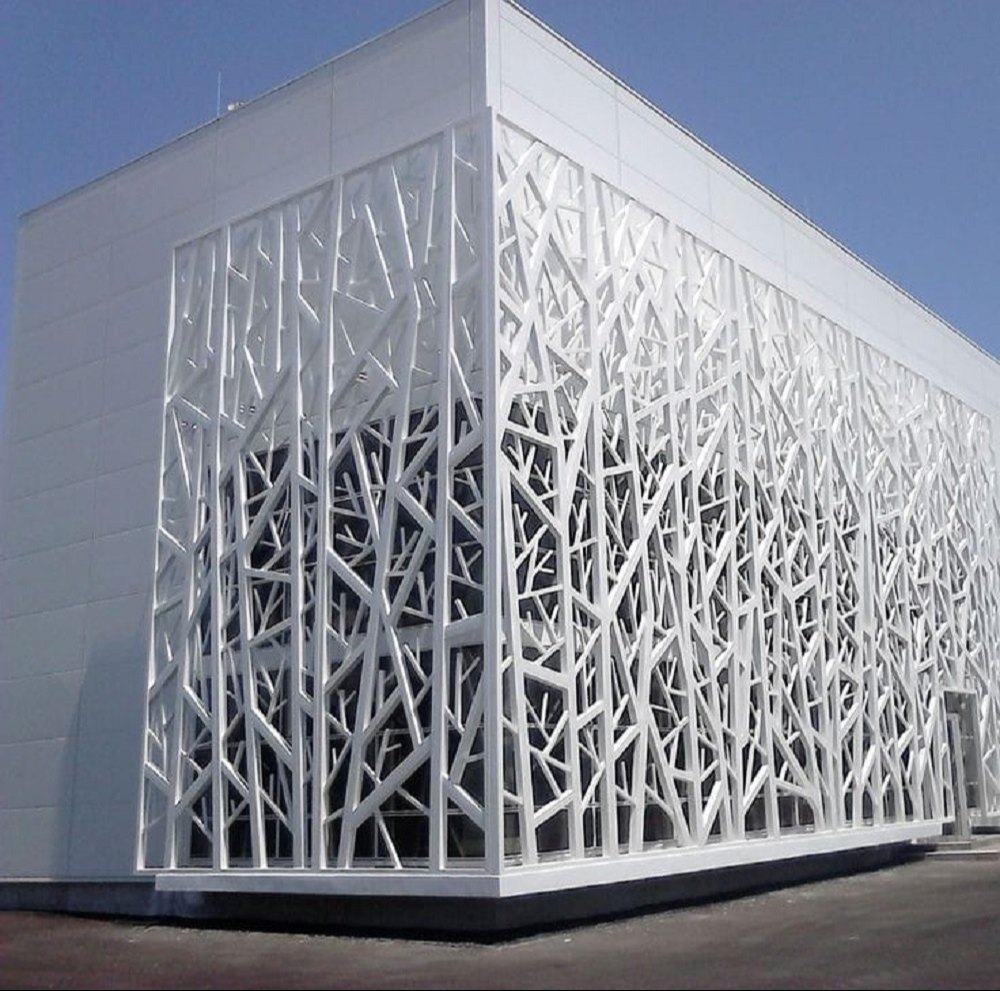

Architectural GFRP panels are custom-designed to meet both aesthetic and thermal insulation requirements. They are often used for building facades, decorative wall cladding, and exterior envelopes where appearance is as important as performance. These panels allow architects and designers to create visually striking structures while maintaining energy efficiency.
5. Modular GFRP Insulated Panels
Modular insulated panels are prefabricated units used in the construction of modular buildings, container offices, portable cabins, and site shelters. They offer the advantages of quick assembly, lightweight construction, and excellent thermal insulation, making them ideal for temporary or relocatable structures.
6. Acoustic GFRP Insulated Panels
Acoustic GFRP panels combine thermal insulation with sound attenuation properties. These panels are designed for environments where both temperature control and noise reduction are critical, such as auditoriums, recording studios, industrial enclosures, and commercial spaces.
7. Fire-Resistant GFRP Insulated Panels
Fire-resistant insulated panels are manufactured with special fire-retardant resin systems and insulation cores to meet stringent fire safety standards. These panels are used in applications where fire resistance is essential, such as high-risk industrial zones, commercial kitchens, and public infrastructure projects.
8. UV-Resistant GFRP Insulated Panels
UV-resistant insulated panels are engineered for outdoor use where prolonged exposure to sunlight is expected. They incorporate UV-stabilized resins and coatings that prevent degradation and maintain thermal performance, making them suitable for building exteriors, roofing, and facade systems exposed to harsh weather conditions.
How to Select the Right Panel?
When choosing thermally insulated GFRP panels, consider:
- Building Type and Use: Different applications have varying requirements for fire safety, insulation, and aesthetics.
- Climate: Select panels with appropriate thermal resistance and UV durability for local conditions.
- Fire Regulations: Ensure panels comply with relevant fire codes.
- Design Requirements: Match panel shape, size, and finish with architectural plans.
- Installation Method: Consider compatibility with the intended mounting system or façade structure.
- Budget: Balance initial costs with lifecycle savings from energy efficiency and low maintenance.
- Supplier Credentials: Choose panels with proven quality certifications and warranties.
Conclusion
Thermally insulated GFRP panels represent a practical solution for modern building envelopes by combining thermal performance with durable external cladding. Their lightweight nature, design adaptability, and low maintenance make them suitable for diverse construction projects. By selecting the right panel type based on specific project needs, architects and builders can enhance building efficiency, meet regulatory standards, and achieve desired aesthetics.
