Tube and coupler scaffolding is a flexible and robust scaffolding system widely used in construction for its adaptability to complex and irregular structures. Known for its strength and stability, it can be configured to suit a wide range of project requirements, including high elevations and confined spaces. This system is especially effective in industrial settings and restoration projects where conventional scaffolding may not be suitable. Though it demands skilled labor and more time to assemble, it provides reliable support for heavy loads and is often chosen for projects requiring custom scaffolding solutions.
The main components of tube and coupler scaffolding include:
- Tubes – Steel or aluminum pipes used to form the vertical, horizontal, and diagonal framework. They come in various lengths and serve different structural purposes.

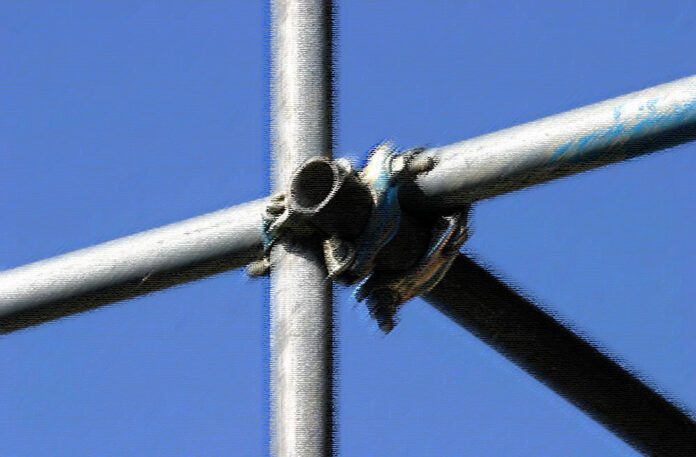

- Right-angle couplers – Used to connect two tubes at a 90-degree angle, typically for joining ledgers to standards.
- Swivel couplers – Allow two tubes to be connected at any angle, useful for creating diagonal bracing.
- Sleeve couplers – Used to connect two tubes end-to-end in a straight line, extending the length of scaffolding members.
- Base plates – Placed under the vertical tubes (standards) to distribute the load evenly and provide a stable foundation.
- Toe boards – Boards placed along the edges of platforms to prevent tools or materials from falling off.
- Planks or working platforms – Provide a surface for workers to stand on; typically made of wood or metal.
- Scaffolding ties – Secure the scaffold to the building or structure to enhance stability.
Applications of Tube and Coupler Scaffolding:
- Industrial Construction: Ideal for refineries, power plants, and factories where complex structures and equipment require customized scaffolding configurations.
- Restoration and Repair Work: Commonly used in heritage buildings and monuments due to its adaptability to irregular shapes and delicate structures.
- Infrastructure Projects: Suitable for bridges, dams, tunnels, and other civil engineering works that demand high load-bearing capacity and flexibility.
- High-Rise Buildings: Provides strong and stable support for façade work, window installation, and exterior cladding at great heights.
- Temporary Support Structures: Can be used as shoring of formwork support in heavy construction projects.
Advantages of Tube and Coupler Scaffolding:
- Highly adaptable to fit any structural shape or size.
- Made from strong, durable steel or aluminum tubes.
- Easily customizable for precise height and angles.
- Suitable for a wide range of construction projects.
- Components are reusable and cost-efficient.
- Ideal for complex or irregular scaffolding requirements.
- Can be safely set up on uneven or sloped terrain.
- Provides secure, rigid connections with couplers.
- Capable of bearing heavy loads reliably.
- Simple maintenance with easy part replacement.
- Works well in confined working spaces.
Type of Tube and Coupler Scaffolding:
1. Single Scaffolding:
Single scaffolding is one of the simplest and most commonly used types, primarily designed for brick masonry work. It consists of a single row of vertical tubes, known as standards, placed parallel to the wall. These are connected horizontally and diagonally with tubes to provide the necessary support and rigidity. The scaffold is erected at a certain distance from the wall to create enough working space for masons. Because it supports only one side, it is best suited for lighter construction activities where the load is relatively low, and the wall itself can bear some weight. Single scaffolding is cost-effective and faster to assemble but is generally not suitable for heavy-duty or tall structures due to limited stability.
2. Double Scaffolding:
Double scaffolding offers greater strength and versatility compared to single scaffolding, making it suitable for heavier construction tasks such as stone masonry. This system features two parallel rows of vertical tubes: one row near the wall and another a short distance away, connected by horizontal ledgers and braces. The gap between these rows provides additional stability and supports heavier loads, allowing workers to access both sides of the wall if needed. Double scaffolding is essential when the wall is unable to support the entire scaffold load or when the work involves taller or more complex structures. Its design ensures safety and durability but requires more materials and time to erect.
3. Suspended Scaffolding:
Suspended scaffolding is distinct from ground-supported systems, as the platform is hung from the roof or upper structures using ropes, chains, or steel cables. This allows the working platform to be raised or lowered vertically, giving easy access to various heights without constructing the scaffold from the ground up. It is commonly used for facade work, painting, window cleaning, or maintenance on high-rise buildings where traditional scaffolding would be impractical or too costly. Suspended scaffolding reduces the footprint on the ground, making it ideal for sites with limited space or public areas that cannot be blocked. It requires specialized safety measures and equipment to ensure secure operation at height.
4. Cantilever Scaffolding:
Cantilever scaffolding is used in scenarios where the ground below cannot support the scaffold’s vertical tubes, such as over trenches, rivers, roads, or uneven terrain. In this system, vertical tubes are supported on cantilever beams or brackets that are anchored securely to the structure itself, projecting horizontally outwards. This setup allows the scaffold platform to extend beyond the support points, providing safe working access without obstructing the area below. Cantilever scaffolding is particularly useful for bridge construction or repair, as well as other civil engineering projects where ground access is limited or hazardous. The design demands careful load calculations to ensure stability and worker safety.
5. Trestle Scaffolding:
Trestle scaffolding is a lightweight and portable type often used for indoor or low-height work. It involves the use of trestles—tripod or ladder-like supports—that hold up the working platform. This scaffolding is convenient for tasks such as ceiling painting, plastering, electrical installations, or repairs within confined or low-rise spaces. Because it doesn’t require extensive assembly or ground support, trestle scaffolding can be quickly moved and adjusted as needed. However, it is limited to lower heights and lighter loads, making it unsuitable for heavy construction or tall structures. Its ease of use makes it a popular choice for maintenance and finishing work.
6. Steel Scaffolding:
Steel scaffolding is made entirely from steel tubes and couplers, offering superior strength, durability, and resistance compared to traditional bamboo or wooden scaffolding. It is widely preferred in large-scale industrial, commercial, and infrastructure projects that demand heavy-duty support and enhanced safety. Steel scaffolding can withstand harsh weather conditions, is fire-resistant, and less prone to damage from pests or rot. Its modular nature allows for efficient assembly and dismantling while providing excellent load-bearing capacity. Due to these qualities, steel scaffolding is often mandated in modern construction, especially where safety regulations are strict and the scaffolding must support heavy materials and equipment over extended periods.
Factors to consider when selecting Tube and Coupler scaffolding:
- Type and complexity of the construction work
- Required height and number of working levels
- Ground condition and site accessibility
- Load capacity for materials, equipment, and workers
- Ease of access and movement for workers
- Space availability around the structure
- Duration and frequency of scaffold use
- Safety features and fall protection needs
- Resistance to weather and environmental exposure
- Project budget and cost-effectiveness
- Flexibility for modifications or reuse
- Compliance with local safety codes and standards
Conclusion
Tube and coupler scaffolding continues to play an important role in construction, especially in projects demanding flexibility, strength, and precision. While it requires skilled assembly and careful planning, its adaptability to various site conditions and structural complexities makes it a preferred choice in industrial, restoration, and infrastructure works. With proper selection, design, and safety adherence, this traditional system remains a reliable and efficient solution in modern construction practices.
