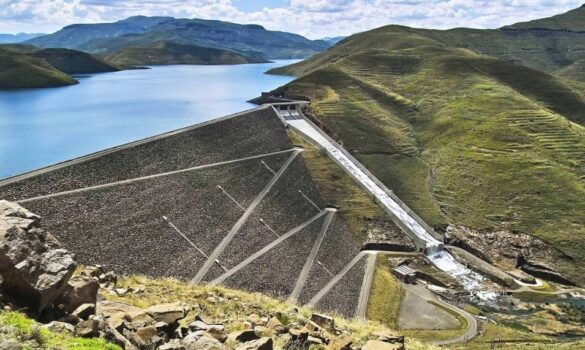

Rockfill Dams Explained: Construction, Types & Advantages

Rockfill dams are among the most reliable and widely used dam types in modern hydraulic engineering. Built using compacted rock fragments with an impervious core or upstream membrane, these dams deliver exceptional stability, adaptability to diverse terrains, and long-term resilience under varying environmental conditions. As infrastructure needs grow worldwide, rockfill dam construction continues to play a key role in water supply, hydropower development, flood mitigation, and irrigation management.

According to global reports, rockfill and earthfill embankment dams account for over 80% of all large dams worldwide, making them a preferred choice for regions with seismic activity and variable foundation conditions.

Applications of Rockfill Dams

• Water Supply Reservoirs – Rockfill dams are widely used to store potable and industrial water, offering excellent performance in terrains where concrete dams are unsuitable. Their flexible design accommodates settlement and reduces seepage through strategic zoning.
• Hydropower Projects – Many medium-to-large hydropower plants rely on rockfill dams due to their strength, height adaptability, and ability to withstand hydrostatic pressure. Over 75% of the world’s 45,000 large dams serve non-hydropower purposes, including irrigation, flood control, navigation, and urban water supply.
• Flood Control Systems – Their high stability under dynamic loading makes rockfill dams valuable in flood-prone zones. These structures help regulate water flow, protecting downstream communities from extreme rainfall and seasonal flooding events.
• Irrigation Networks – Rockfill dams create controlled storage reservoirs that ensure reliable irrigation for agricultural lands, especially in arid regions aiming for sustainable crop production.
• Industrial and Mining Applications – Many industries develop tailing storage and process water reservoirs using rockfill dam designs due to cost efficiency and ease of expansion.

Advantages of Rockfill Dam Construction

Rockfill dams offer several structural, economic, and environmental benefits:

• Excellent seismic performance due to their flexible, energy-absorbing rockfill body
• Rapid construction timelines and reduced need for high-grade concrete
• Ability to use locally available rock materials, lowering transportation costs
• High resistance to differential settlement and strong performance on weak foundations
• Adaptability to extreme environmental conditions, including high rainfall and temperature variations
• Minimal maintenance due to robust structural behavior
• Lower permeability when built with central clay core or concrete face membranes
• Suitable for great heights—several rockfill dams worldwide exceed 200–300 meters

Types of Rockfill Dams

Central Core Rockfill Dam

These dams include a centrally placed impervious clay core to prevent water seepage. The surrounding rockfill shoulders provide structural strength. This is one of the most widely used designs globally due to its long-term reliability and ease of construction.

Upstream Concrete Face Rockfill Dam (CFRD)

CFRDs use a concrete slab on the upstream side as an impermeable barrier. The method allows faster construction and requires less fine material. CFRD design and construction technology is now highly advanced, enabling dam heights of 200–300 meters.

Zoned Rockfill Dam

These are constructed using layers (zones) of materials with different properties—coarse rock, transition filters, and fine core materials. The zoning ensures stability, filtration, and effective seepage control.

Homogeneous Rockfill Dam

Built using uniformly graded rockfill, these are simpler but primarily applicable where seepage is less critical or where additional lining systems are used.

Construction Methods for Rockfill Dams

Rockfill dam construction follows a systematic, engineering-driven approach:

• Foundation Preparation – Includes excavation, leveling, grouting, and strengthening the base to ensure long-term stability.
• Placement of Rockfill – Rock fragments are placed in layers and compacted using heavy rollers to achieve required density and settlement control.
• Core or Membrane Installation – Depending on the dam type, engineers install a clay core, asphalt membrane, or concrete face to act as the impervious barrier.
• Filter and Transition Zones – These layers prevent fine particles from moving and protect against internal erosion.
• Hydraulic Structures Construction – Spillways, outlet works, and energy dissipators are integrated to safely manage water flow.
• Quality Control & Monitoring – Continuous compaction tests, material grading checks, and instrumentation ensure structural integrity.

Conclusion

Rockfill dams remain one of the most efficient and adaptable solutions for water resource management and hydropower development. Their ability to withstand seismic forces, use locally available materials, and perform reliably under varying environmental conditions makes them a preferred choice for modern infrastructure. As global demand for safe and sustainable water systems increases, rockfill dam construction will continue to play a pivotal role in shaping resilient hydraulic engineering practices.
