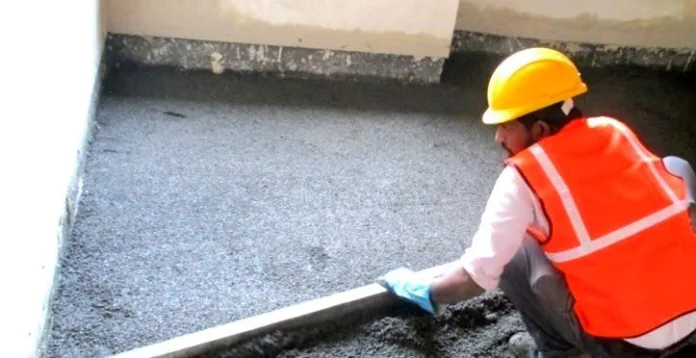

Mortar and cementitious slurry are essential adhesives used in the process of laying floor tiles that binds tiles to the substrate. Mortar, a mixture of cement, sand, and water, provides a durable and level surface for tiles, while cementitious slurry acts as a thin, smooth layer that fills gaps and enhances tile adhesion. These materials ensure proper alignment and provide a strong base for tiling applications. It is important to select the right product as per project requirements. RAZON Engineering is a leading manufacturer of construction chemicals offering a range of mortars and additives. This company has earned a reputation for its exceptional manufacturing of construction chemicals with a focus on high quality. Their products are known for consistently meeting industry standards, delivering reliability and effectiveness to construction projects.
Discussed below are companies two different products Master Mortar MM-TRU & TG-135 used for floor tiling applications.
RAZON Master Mortar-MM TRU: Advanced Bedding Mortar for Floor Tiling
The scarcity of high-quality sand and challenges with homogeneous cement-sand mixes led to the development of RAZON MM-TRU. It is ready-to-use mortar designed for floor bedding, ensuring an extended open leveling time of up to 6 hours, coupled with excellent workability and mortar strength. It stands out for its unique formulation that prevents premature stiffening, allowing for prolonged leveling without the need for re-tempering with water. This simplifies the process, enabling seamless and efficient flat leveling before tile installation.
Advantages of MM-TRU:
- Minimal water requirement enhances mortar density.
- Homogeneous dispersion of cement eliminates dry mixing, ensuring consistent quality.
- No retempering of mortar needed.
- Extended working time of up to 6 hours, even during summers.
- Enhances compressive, tensile bond adhesion, and flexural strength compared to conventional mortars.
- Promotes wet compaction and dry density of SSD mortars.
- Reduced permeability in cured mortar.
- Eliminates issues like mortar flocculation, lumps, and weak bonding seen in conventional m-sand mortars.
- Improved leveling and finish for bedding mortars.
- Reduced risk of sagging and hollow sound post-tile placement.
MM-TRU conforms to IS 2250-1981 (reaffirmed 2010) for Masonry Mortars and IS 10262-2009 for Concrete Mix Design Guidelines.
Results obtained MM-TRU at a 0.10 water/Powder ratio
|Plastic Density||2355 kg/m3|
|Open Leveling time||–||Upto 360 minutes|
|7 Day Compressive Strength||BS 6319 Pt 2||3.47 N/mm2|
|28 Day Compressive Strength||BS 6319 Pt 2||7.14 N/mm2|
Applications and method of use
Master Mortar MM-TRU is an excellent choice for floor tiling. It’s a ready-to-use mortar that replaces traditional cement and sand bedding mortars. It’s particularly suitable for floor bedding (machan) instead of cement and sand mortars. It offers great impermeability and is self-curing.
For optimal results in floor tiling:
- Clean and wet the floor that needs tiling.
- Create a cement slurry with a 1:1 ratio of cement to water, and apply it to the cleaned floor.
- Pour MM-TRU onto the floor in a heap and add water (4 liters per 40 kg of MM-TRU).
- Mix the depot/heap with water to create the mortar (avoid dry mortar followed by water spraying).
- Level the mortar as usual.
- Enhance the cement slurry with Razon TG-135, a powder additive that improves bonding.
- Spread the enhanced cement slurry over the MM-TRU bedding mortar.
MM TRU is designed for workability without needing additional water, ensuring a strong and durable cement sand matrix. It shows better bond strength compared to conventional mortars.
MM-TRU has a plastic density of approx 1450 kg per m3, and thus for 45 mm thickness 65 kgs of MM-TRU is consumed in 1 sq m area.
|1.||Colour||Greyish granular powder.|
|2.||Density||1.45 +/-5 %|
|3.||Chlorides & Sulfates||Nil.|
|4.||Consistency||Granular powder, 0-6 mm|
|6.||Pot life||6 hours|
|7.||Storage – Shelf life||1 year when Stored in sealed packing away from direct sunlight, and moisture in a cool and dry place.|
|8.||Standards||IS 2250-1981 IS 10262-2009|
|9.||Packing||5, 20 & 40 kg bags,|
RAZON TG-135: Cementitious Slurry Powder Additive for Superior Bonding & Strength in Tile Installation.
TG-135 is a specialized formulation designed for the tiling industry, commonly used after spreading bedding mortar. A cement slurry is prepared and applied over the mortar before placing tiles. Incorrect slurry consistency can lead to poor adhesion, loose tiles, and hollowness.
- Improves cement slurry consistency.
- Enhances bond strength.
- Increases tackiness.
- Provides a cohesive, non-bleeding slurry.
- Ensures slurry fills gaps in bedding mortar.
- Reduces cement shrinkage.
- Prevents calcite leaching marks at tile joints.
- Enables seamless, impermeable, waterproof tile laying.
- Enhances tack for vertical tiling.
- Offers self-curing properties, eliminating post-work water curing.
Following results were obtained by preparing cementitious slurry as a bond coat placed between bedding mortar (machan) and tile, for floor tiling application using 50 kg Ordinary Portland Cement of 53 Grade, 40 litres of water and 5 kg of Razon TG-135 mixed by mechanical stirrer.
|Tensile Pull Out Adhesion Strength of Floor tile on 28th day||ASTM D 4541||> 1 N/mm2|
|Area Covered per 50 kg of cement used for preparing slurry||–||165 sq ft|
Method of use
The product can be used as a bedding mortar to obtain a firm, non sag and dense bedding mortar. Refer Technical Data Sheet of MM-TRU above for best results in floor tiling.
To prepare cement slurry for floor tiling:
- Add 30-40 liters of clean water to a vessel.
- Gradually add 50 kg of cement while mixing with a mechanical stirrer.
- Mix until uniform consistency is achieved.
- Add 5 kg of Razon TG-135 and continue mixing.
- Apply this slurry on the bedding mortar and lay tiles.
Avoid puncturing or hacking the mortar with a trowel when TG-135 is used.
For wall tiling, add 9-10 kg of TG-135 per 50 kg of cement for a paste-like consistency. Apply this paste on both the wall surface and tile surface using a notched trowel.
Tile grouting with cementitious grouts can be done after 24 hours. For epoxy grouts, allow 5-7 days for complete setting of bedding mortar and binder.
Use Razon Tile Joint Sealer or Razon TJS-EPB epoxy Tile Grout for best results.
TG-135 is suitable for various tiling applications, including ceramic wall and vitrified ceramic/marble floor tiling. Compatible with OPC & PPC cements.
|Loose Bulk Density||0.80 – 0.95|
|Dosage||5-6 kg per 50 kg of cement for floor tiling 9-10 kg per 50 kg of cement for wall tiling|
|Packing||5kg bag, 20 kg bag|
|Storage & Shelf Life||1 year when stored in sealed condition away from moisture & direct sunlight, in a cool & dry place.|
|Cement Compatibility||OPC & PPC|
|Mixing||Preferably use Mechanical Mixers or stirrers for homogenous mixing of Cement, water and TG-135.|
It is strongly recommended that site trials be conducted using site conditions and available raw materials to evaluate the product. Since site materials and conditions are beyond our control and since above suggestions and recommendations are based on our site trials and laboratory product evaluation & trials, and since methods of use at site are beyond our control. Hence, no guarantee can either be implied or enforceable. All Razon datasheets are updated on a regular basis. It is the user’s responsibility to obtain the latest version.
