Glass fiber-reinforced gypsum; Manufacturing methods, products & applications

These products are used in construction for manufacturing of lightweight, durable architectural elements like decorative panels, moldings, and ceiling tiles etc.

Glass fiber-reinforced gypsum (GFRG) is a composite material made by incorporating glass fibers into gypsum plaster. The combination results in a strong and durable material with enhanced structural properties. The composite material is known for its lightweight nature and the ability to be molded into intricate designs It is commonly used in construction for various applications, such as wall panels, ceilings, decorative elements, and architectural features.

Different methods for manufacturing glass fiber-reinforced gypsum products

Spray-Up Method:

The Spray-Up method is characterised by the application of a mixture of gypsum plaster and chopped glass fibers onto a mold surface using a specialized spray gun. This process allows for rapid and uniform coverage, ensuring consistent thickness. The versatility of the spray-up technique makes it particularly efficient for manufacturing larger and more complex GFRG components.

Premix Method:

In the Premix method, gypsum plaster and glass fibers are pre-blended into a dry mix. During manufacturing, water is added to activate the gypsum, resulting in a consistent mixture. This method provides precise control over the composition of the material and is well-suited for large-scale production.

Continuous Filament Method:

The Continuous Filament method involves pulling continuous glass fibers through a bath of gypsum slurry, coating the fibers with the material. The coated fibers are then passed through a forming system to shape the GFRG product. This method is advantageous for creating continuous, reinforced structures with high strength. It is particularly suitable for manufacturing long GFRG elements such as panels and profiles, where a continuous and reinforced composition is essential.

Pultrusion Method:

The Pultrusion method involves pulling a mixture of gypsum powder and glass fibers through a heated die, solidifying the material into the desired shape. This method offers high production efficiency and consistency, making it suitable for creating linear profiles like beams or rods.

Glass fiber-reinforced gypsum manufacturing

Glass fiber-reinforced gypsum products offer several advantages:

  • Durable
  • Lightweight
  • Quick Installation
  • Thermal Insulation
  • High Strength-to-Weight Ratio
  • Flexibility and Moldability
  • Dimensional Stability
  • Fire Resistance
  • Acoustic Properties
  • Reduced Environmental Impact
  • Corrosion Resistance
  • Quick Installation

Different types of glass fiber-reinforced gypsum products and their applications

1. GFRG Wall Panels:

GFRG wall panels are large rigid sheets used for both interior and exterior applications. Their lightweight nature facilitates easy installation, while the inherent strength derived from glass fibers ensures structural integrity. The moldability of these panels allows for the creation of intricate designs, making them suitable for a wide range of architectural styles. The advantages encompass quick installation, fire resistance, and the ability to contribute to the overall aesthetics of a space. Common uses include residential and commercial buildings where a combination of structural support and visual appeal is desired.

2. GFRG Ceiling Panels:

GFRG ceiling panels provide a lightweight and decorative option for interior spaces. These products provide a smooth and seamless finish, contributing to a modern and sophisticated aesthetic. Additionally, GFRG’s fire-resistant properties make it a safe option for ceiling applications. Their applications include commercial buildings such as offices and retail spaces, residential settings like homes and apartments, educational institutions, healthcare facilities, hotels, entertainment venues, public buildings, transportation hubs, and recreational facilities.

3. GFRG Columns:

GFRG columns serve as both functional supports and ornamental features in architecture. The lightweight yet strong nature of these columns allows for diverse design possibilities. Advantages include their ability to bear structural loads while offering creative freedom in shaping various column styles. Common uses include residential and commercial buildings, where columns play a role in both structural support and architectural expression.

GFRG column
GFRG column
GFRG ceiling panel
GFRG ceiling panel

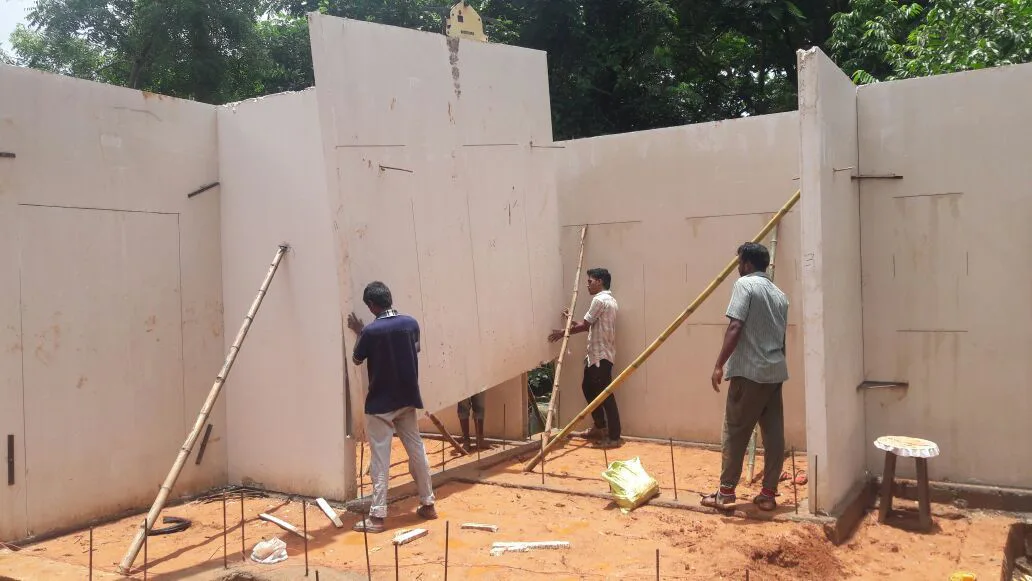

GFRG wall panel
GFRG wall panel

4. GFRG Cornices and Moldings:

GFRG cornices and moldings function as decorative elements that add a finishing touch to buildings. The lightweight nature of these panels simplifies installation, and their moldability allows for the replication of intricate architectural details at a fraction of the weight of traditional materials. Advantages include cost-effectiveness, easy customization, and the ability to contribute to the overall visual appeal of structures. Common uses involve residential and commercial buildings where architectural detailing is desired.

5. GFRG Cladding Panels:

GFRG cladding panels offer a durable and visually appealing solution for exterior applications. Their strength and moldability enable the creation of striking facades, while the fire-resistant properties enhance safety. Advantages include weather resistance, thermal performance, and design flexibility. Common uses encompass both residential and commercial buildings, where cladding serves a dual purpose of protection and aesthetics.

GFRG cornices and molding
GFRG cornices and molding

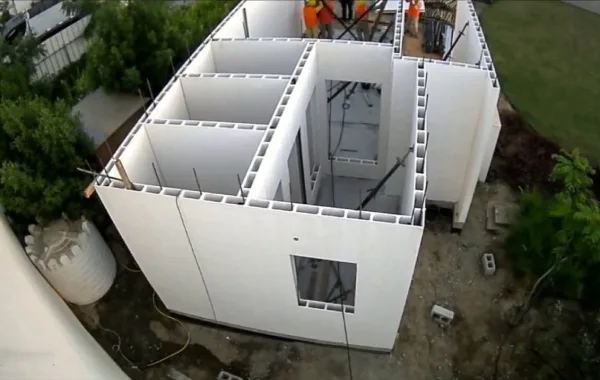

GFRG cladding panel
GFRG cladding panel

6. GFRG Modular Components:

GFRG modular components streamline the construction process by integrating features such as niches and shelves into pre-made panels. The advantages include time efficiency, consistency in design, and cost-effectiveness. Common uses involve interior spaces where modular components can be incorporated seamlessly, such as hotels, offices, and residential buildings.

7. GFRG Prefabricated Elements:

GFRG prefabricated elements, such as domes or arches, offer a quick and precise solution for achieving specific architectural designs. Advantages include time savings, precision in construction, and the ability to create unique focal points in a building. Common uses involve projects where intricate architectural elements are desired, such as museums, religious structures, or historical renovations.

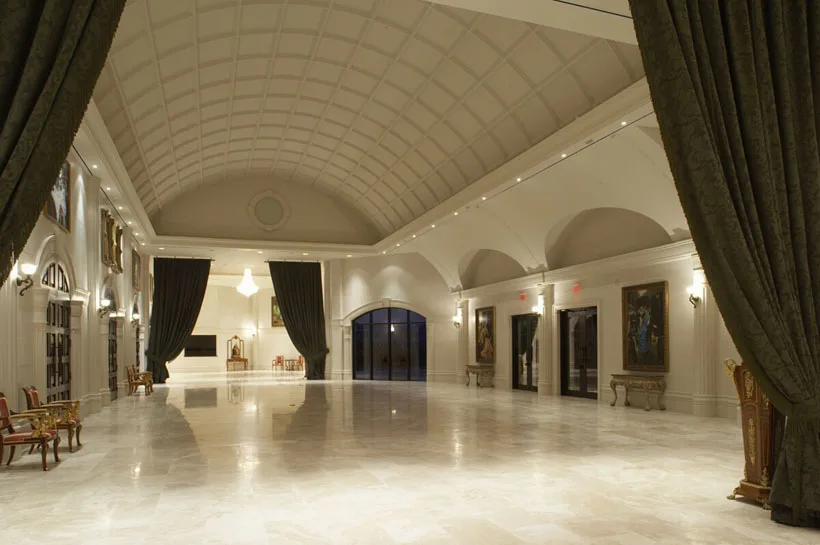

8. GFRG Domes and Vaults:

GFRG is employed in the construction of domes and vaults, adding architectural elegance and structural integrity to buildings. These elements are particularly popular in spaces like atriums, religious structures, and public buildings where a grand aesthetic is desired. The lightweight yet robust nature of GFRG ensures that these architectural features are not only visually appealing but also manageable in terms of structural support. GFRG domes and vaults can be customized in various shapes and sizes, allowing architects to achieve unique and creative designs.

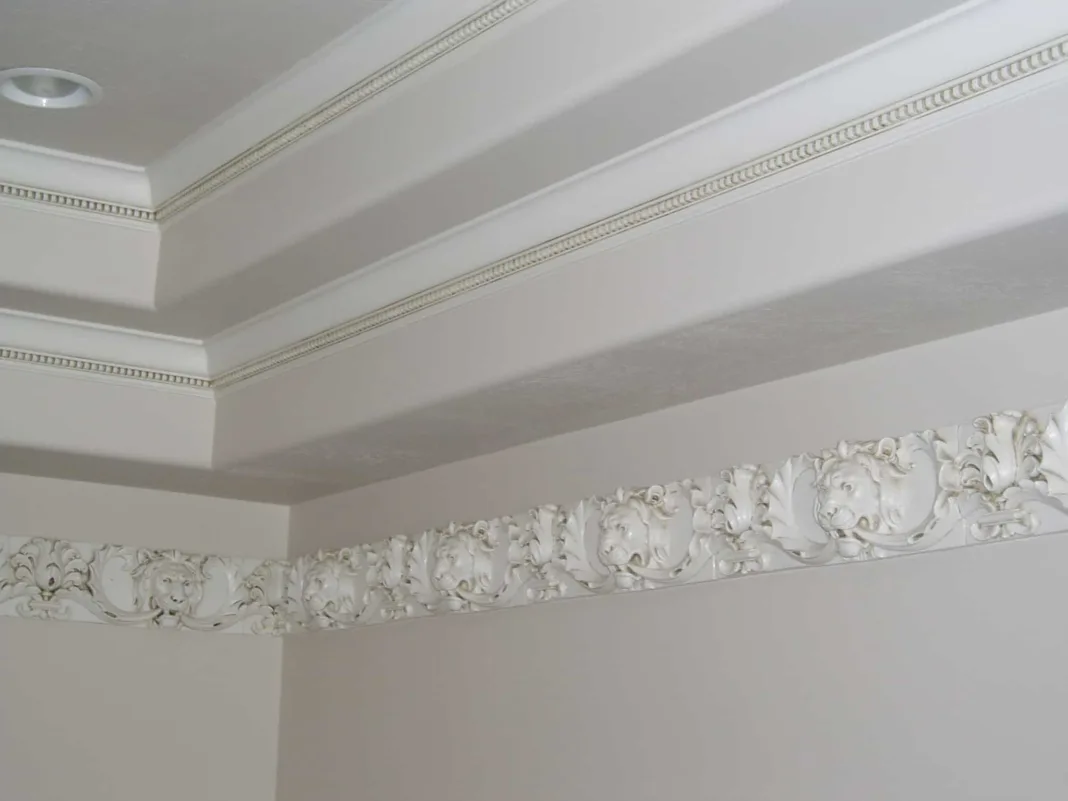

9. GFRG Moldings and Trim:

GFRG is extensively used for creating decorative elements such as cornices, moldings, and trim in construction. The moldability of GFRG allows for intricate and customized designs, enhancing the overall aesthetics of buildings. These decorative elements are not only visually appealing but also cost-effective compared to traditional materials like plaster.  It can be used for interior and exterior of residential buildings, commercial buildings, and institutional buildings

GFRG Domes and Vault
GFRG Domes and Vault
GFRG Domes and Vault
GFRG Domes and Vault

10. GFRG Boards:

GFRG boards, thinner counterparts to panels, find applications in partition walls and false ceilings. These boards maintain the advantages of being lightweight and easy to handle while providing a versatile solution for interior spaces. GFRG boards offer good acoustic properties, making them suitable for soundproofing applications. Their quick installation and adaptability make them a practical choice for constructing efficient and aesthetically pleasing interior structures.

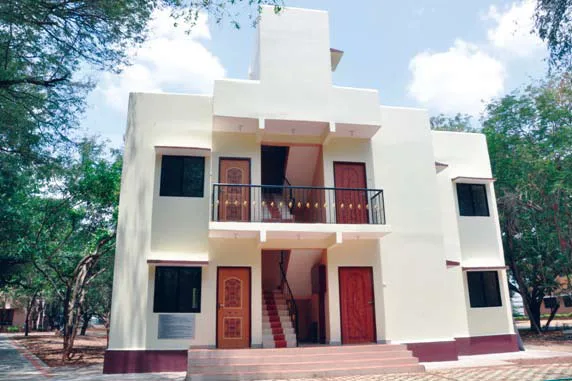

IIT Madras Campus

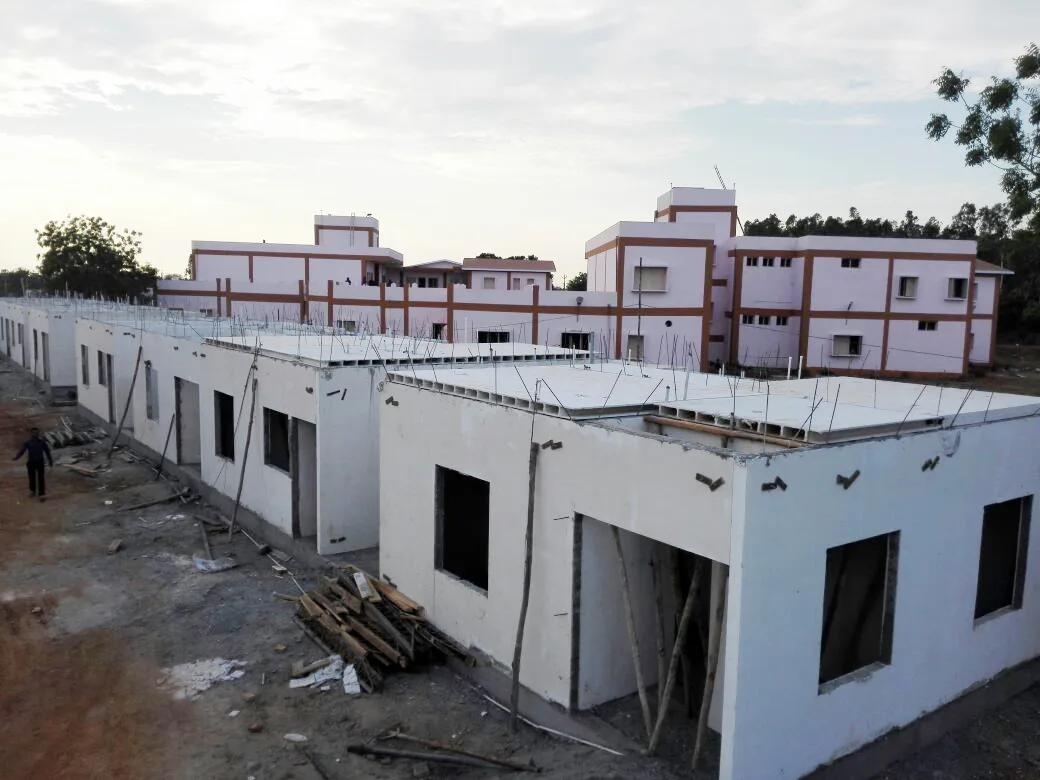

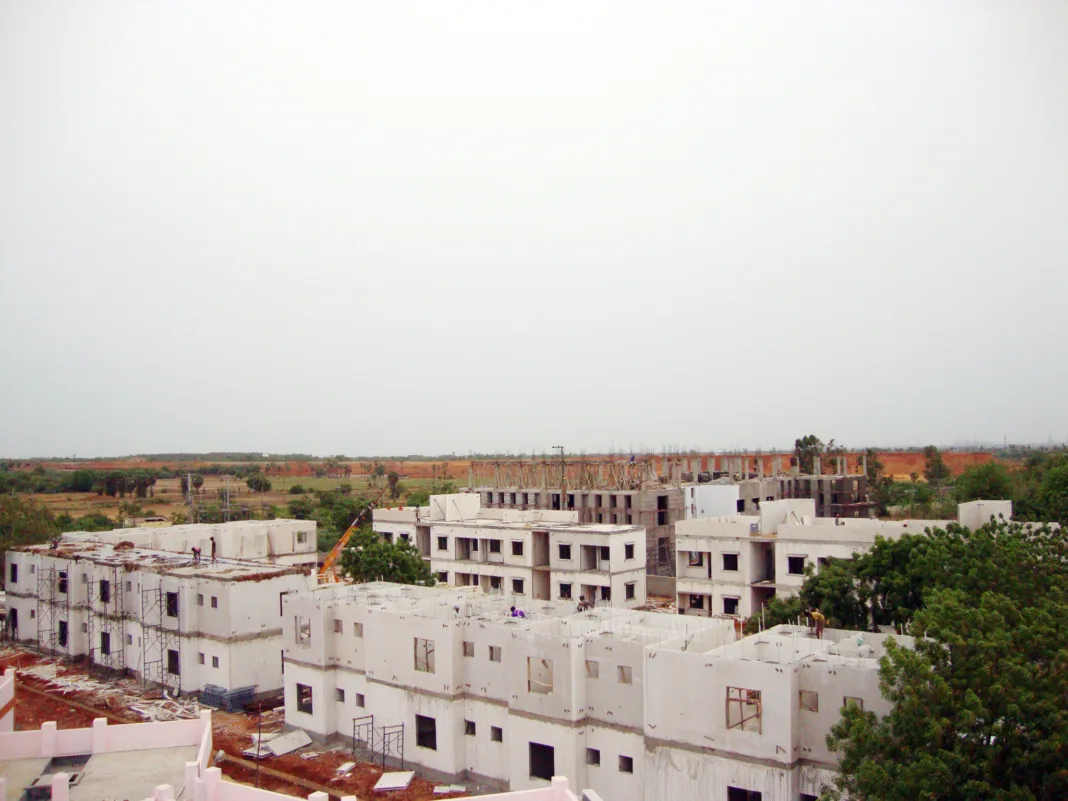

Project executed by IIT Madras with FRBL for Andhra Pradesh State Housing Corporation
Project executed by IIT Madras with FRBL for Andhra Pradesh State Housing Corporation

Glass fiber-reinforced gypsum Projects

Conclusion

GFRG (glass fiber-reinforced gypsum ) products offer a sustainable and cost-effective solution in construction. Their lightweight nature, coupled with fire resistance and moldability, makes them a versatile choice. As the construction industry continues to prioritize eco-friendly alternatives, GFRG emerges as a promising material, showcasing potential for widespread adoption in various architectural applications.

Project Image Source: ghtc-india.gov.in, bmtpc.org
