Auger Boring Machines For Installation of Underground Utilities

Different Types and Applications of Auger Boring Machines

Auger boring machines are designed for horizontal drilling and installation of underground utilities such as pipes, conduits, cables etc. where digging trenches is impractical. These machines utilise a rotating helical screw, called an auger, to excavate soil and remove it from the borehole. ABMs come in various sizes and configurations to accommodate different soil conditions, pipe diameters, and project requirements. They are commonly used in trenchless construction methods to minimise surface disruption and environmental impact compared to traditional open-cut excavation methods.

Where are auger boring machines used?

  • Pipeline Installations
  • Cables and Conduits Installations
  • Culvert and Drainage Installations
  • Geotechnical Investigations
  • Tunneling (small-scale)

Components of auger boring machines

  • Frame: The structural backbone providing stability and support.
  • Auger: A rotating tool with helical blades for digging through soil.
  • Cutting Head: The front section equipped with blades for soil fragmentation.
  • Power Source: Typically powered by a diesel engine or hydraulic system.
  • Guidance System: Ensures precise alignment and grade control.
  • Spoil Removal System: Equipment used for extracting excavated material.
  • Launch and Receiving Pits: Dug areas facilitating machine entry and exit.

How do auger boring machines work?

Auger boring machines are used for underground drilling without disturbing the surface. Here’s a step-by-step overview of how they work:

1. Setup: The auger boring machine is positioned at the starting point of the bore, typically aligned with the desired underground path.

2. Auger Deployment: The auger, a rotating helical screw-like drill, is extended into the ground. It’s powered by hydraulic motors or other means, depending on the machine’s design.

3. Rotary Drilling: The auger rotates and digs into the soil or rock, breaking it up and creating a borehole. The rotation can be continuous or intermittent, depending on the specific drilling requirements.

4. Soil Removal: As the auger digs deeper, soil or other materials are conveyed back to the surface through the auger flighting. This can be assisted by additional machinery like conveyors or buckets, depending on the machine setup.

5. Casing Installation (optional): For stability or to prevent collapse of the borehole, casing pipes may be installed simultaneously with drilling. These pipes are typically lowered into the borehole as the auger progresses.

6. Advancement: The auger continues drilling deeper into the ground until reaching the desired depth or endpoint. The process may involve periodic retraction and repositioning of the machine to continue the bore in the correct direction.

7. Extraction: Once the drilling is complete, the auger is retracted, and any casing pipes are left in place or removed depending on the project requirements.

8. Backfilling: If necessary, the borehole can be backfilled with grout, concrete, or other materials to stabilise the surrounding ground and secure any utilities or structures installed within the bore.

9. Site Cleanup: After the auger boring operation is finished, the site is typically cleaned up, and any equipment is demobilised from the area.

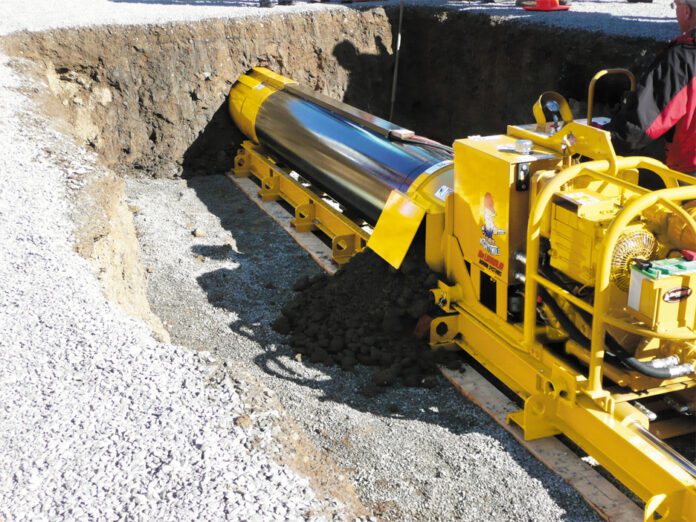

Auger Boring Machine at project site

Advantages of auger boring machines

  • Minimises surface disruption
  • Suitable for urban areas with limited space
  • Versatile, can be used in various soil and rock conditions
  • Faster installation compared to traditional open-cut methods
  • Cost-effective for long-distance installations
  • Increased safety for workers and public compared to open trenches
  • Minimal traffic disruption during installation
  • Can accommodate different pipe and conduit sizes
  • Suitable for both shallow and deep installations
  • Capable of installing multiple utilities in a single bore
  • Less noise and vibration compared to conventional drilling methods

Types of auger boring machines

Horizontal Auger Boring Machines:

Horizontal auger boring machines are indispensable tools for creating underground boreholes for horizontal pipe installations. Their primary advantage lies in their ability to drill beneath obstacles such as roads, railways, and buildings without disturbing surface traffic or structures. This trenchless method of pipe installation minimises environmental impact and reduces construction time compared to traditional open-cut methods. These machines feature a horizontal frame with a rotating auger at the front, capable of handling various soil conditions and accommodating different pipe sizes. Their applications are diverse, ranging from installing water mains and sewer lines to gas pipelines and telecommunications cables in urban and suburban areas. Horizontal auger boring machines are particularly suitable for long-distance installations, including crossings under highways, rivers, and other challenging terrain.

Vertical Auger Boring Machines:

Vertical auger boring machines specialise in creating vertical boreholes for installing utility poles, foundation piles, and other vertical structures. Their key advantage lies in providing a reliable and precise method for vertical drilling, ensuring proper alignment and load-bearing capacity for the installed structures. These machines are specifically configured for vertical drilling operations, equipped with mechanisms to maintain alignment and stability during excavation. They may feature depth control systems, various auger flighting options, and safety features tailored for vertical drilling. Vertical auger boring machines find applications in construction projects for installing foundation piles, utility poles, signposts, and other vertical structures. Additionally, they are utilised in geotechnical investigations for soil sampling, groundwater monitoring, and well installations.

Directional Auger Boring Machines:

Directional auger boring machines offer unparalleled flexibility in underground pipe installations by allowing changes in drilling direction. Their primary advantage lies in their ability to install pipes with curved or non-linear paths underground, providing precise control over the bore path. Equipped with steering mechanisms such as articulated frames or adjustable drill heads, these machines can navigate around obstacles and follow specific routes while minimising surface disruption. Directional auger boring machines often incorporate advanced guidance systems, GPS technology, and real-time monitoring for accurate bore path control. They find widespread applications in urban environments and congested areas where space constraints and existing infrastructure necessitate intricate pipe layouts. Ideal for installing pipelines around buildings, under rivers, and through densely populated neighbourhoods, directional auger boring machines play a crucial role in modern underground construction projects.

Pipe Pusher Auger Boring Machines:

Pipe pusher auger boring machines represent an innovative approach to underground pipe installation by combining auger boring with pipe pushing capabilities. One of their primary advantages is the ability to simultaneously bore a hole and push the pipe into the ground, streamlining the installation process and reducing the need for additional equipment and manual labour. These machines typically feature a hydraulic system that drives the pipe forward as the auger excavates soil, ensuring continuous progress with minimal interruption. This integrated approach not only enhances efficiency but also improves accuracy and alignment during pipe installation. Pipe pusher auger boring machines find applications in various pipeline installation projects, particularly in urban and suburban areas where space is limited, and surface disruption must be minimised. They are ideal for installing utility lines, drainage pipes, and conduits under roads, sidewalks, and other existing infrastructure.

Microtunneling Auger Boring Machines:

Microtunneling auger boring machines are specialised equipment designed for microtunneling applications, where precise control over alignment and grade is crucial. One of their key advantages is their ability to achieve accurate alignment and grade control, ensuring the integrity and functionality of the installed pipeline. These machines are typically compact and manoeuvrable, making them well-suited for working in confined urban spaces with limited access. They feature advanced guidance systems, including laser or gyroscopic technology, to maintain alignment and grade within tight tolerances. Additionally, microtunneling auger boring machines are capable of installing smaller diameter pipes, making them ideal for projects requiring the installation of sewer lines, water mains, or utility conduits in densely populated areas. Their precise control and versatility make them indispensable tools for modern underground construction projects.

Why demand auger boring machines?

  • Urbanisation driving need for underground infrastructure
  • Government focus on infrastructure development
  • Auger machines offer trenchless installation, reducing surface disruption
  • Environmental considerations favouring less invasive construction methods
  • Cost efficiency compared to traditional excavation
  • Technological advancements improving machine capabilities and performance

Conclusion

Auger boring machines represent a crucial innovation in underground construction, offering a versatile and efficient solution for installing pipelines, utilities, and conduits. As urbanization accelerates and infrastructure demands grow, these machines play a vital role in minimizing surface disruption, reducing environmental impact, and enhancing cost efficiency. With ongoing technological advancements and increasing awareness of environmental sustainability, the demand for auger boring machines is expected to continue rising in India and around the world. As key players in the construction industry embrace these advanced technologies, auger boring machines will undoubtedly remain indispensable tools for meeting the challenges of modern infrastructure development.

Image Source: indiantradebird.com, kovaiclassicindustries.com, shreeshaktiengineering.co.in, dynamixtrenchless.com
