What is cantilever scaffolding?- Its advantages, types & applications

Cantilever scaffolding, also known as needle scaffolding, is a specialized scaffolding system used in construction and maintenance projects, particularly when access to the side of a building or structure is required. Unlike traditional scaffolding, which relies on vertical supports from the ground, cantilever scaffolding extends horizontally from the building or structure. Cantilever scaffolding consists of a horizontal platform that extends outward from a building or structure, supported by a series of vertical and diagonal braces. The platform is securely attached to the building at one end, allowing workers to access areas that are otherwise challenging to reach. This type of scaffolding is commonly used for tasks like repairing or painting the exterior of buildings, as it provides a stable working platform that can be adjusted to different heights and positions.

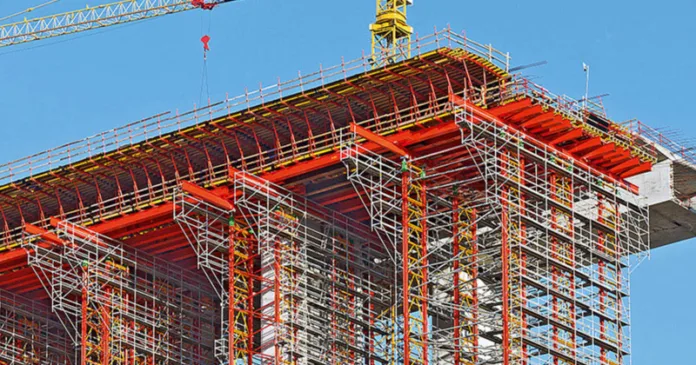

Cantilever Scaffolding System

Components of cantilever scaffolding

1. Main Frame: The main frame is the foundational structure that connects to the building or structure being worked on. It provides the primary support for the scaffolding system.

2. Cantilever Beam: This horizontal beam extends outward from the main frame and forms the working platform. It is the distinctive feature of cantilever scaffolding, as it protrudes without vertical support on its free end.

3. Needle Beam: Needle beams are horizontal beams that are supported by the structure being worked on and extend inward to support the free end of the cantilever beam. They help distribute the load and provide stability.

4. Brackets: Brackets are attached to the cantilever beam and provide additional support and stability to the working platform. They are essential for maintaining the strength and balance of the scaffolding.

5. Guardrails and Toeboards: Safety is a crucial aspect of any scaffolding system. Guardrails are installed along the edges of the working platform to prevent falls, while toeboards help contain tools and materials and further enhance safety.

6. Platform Decking: The platform decking is the surface on which workers stand and work. It can be made of wooden planks, metal grating, or other suitable materials, ensuring a stable and secure surface.

7. Ties and Anchors: Cantilever scaffolding needs to be securely anchored to the building or structure. Ties and anchors are used to attach the main frame to the support structure, providing stability and preventing any movement.

8. Counterweights: In some cases, counterweights may be necessary to balance the cantilevered portion of the scaffolding and prevent tipping or instability.

These components work together to create a safe and functional cantilever scaffolding system. It’s crucial to ensure that all components are in good condition, properly installed, and regularly inspected to maintain safety and stability during construction or maintenance activities.

Components of cantilever scaffolding

Advantages of of cantilever scaffolding

1. Access to Obstructed Areas: Cantilever scaffolding is ideal when there are obstacles like balconies, overhangs, or other obstructions on the building’s façade. It allows workers to reach these areas safely.

2. Minimizes Ground Obstruction: Unlike traditional scaffolding that requires support on the ground, cantilever scaffolding reduces ground-level obstructions, making it suitable for narrow or congested work areas.

3. Efficient Use of Space: It maximizes usable space on the construction site since there are no vertical supports extending from the ground.

4. Cost-Effective: Cantilever scaffolding can be more cost-effective than other specialized access methods, especially in cases where ground-based scaffolding would be challenging to set up.

5. Versatility: It can be used for various tasks, such as painting, repairs, maintenance, and window installation, making it a versatile option.

Mobile Cantilever Platform

Types of cantilever scaffolding

Cantilever scaffolding comes in different types, each designed for specific applications and situations. Here are some common types of cantilever scaffolding:

1. Needle Beam Cantilever Scaffolding: This is the most basic type of cantilever scaffolding, consisting of a horizontal cantilever beam supported by needle beams that rest on the building or structure being worked on. It’s used for tasks like plastering, painting, or repairs.

2. Single-Frame Cantilever Scaffolding: In this type, a single main frame is connected to the building, and the cantilever beam extends from it. It’s suitable for relatively lighter tasks and situations where minimal obstruction is present.

3. Double-Frame Cantilever Scaffolding: This type involves two main frames connected to the building, providing more stability and load-bearing capacity. It’s used for heavier tasks and in cases where a larger working platform is needed.

4. Counterbalanced Cantilever Scaffolding: Counterbalanced cantilever scaffolding uses counterweights on the opposite side of the cantilever to balance the load. It’s often employed when there’s limited space on the building side or when it’s challenging to anchor the scaffold to the structure.

5. Trussed Cantilever Scaffolding: Trussed cantilever scaffolding incorporates diagonal bracing and truss-like structures to enhance stability and load-bearing capacity. It’s suitable for demanding construction and maintenance tasks.

6. Suspended Cantilever Scaffolding: While not technically cantilever scaffolding in the traditional sense, suspended scaffolding systems can be configured in a cantilevered manner. They hang from overhead supports and extend outward, allowing workers to access the exterior of buildings, bridges, or other structures.

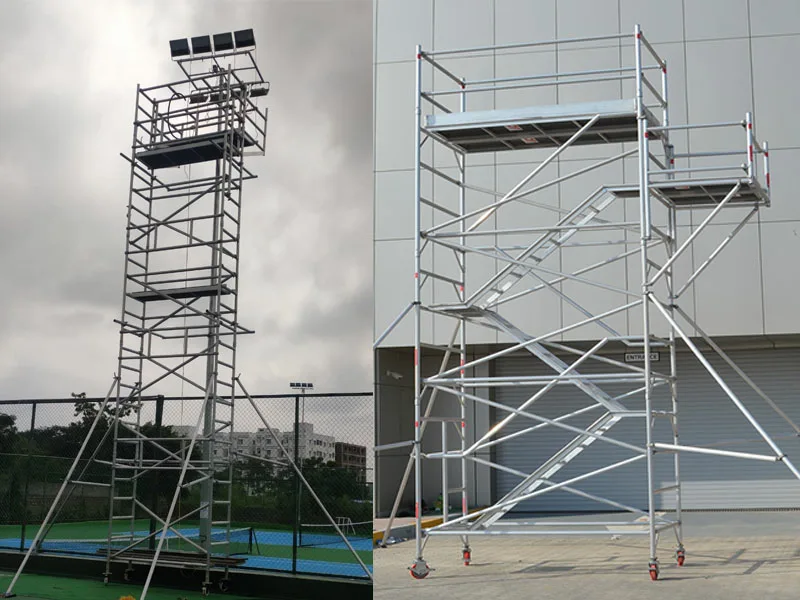

7. Rolling Cantilever Scaffolding: Mobile or rolling cantilever scaffolding includes wheels or casters, making it easy to move around as needed. This type is suitable for projects that require frequent repositioning.

8. Joint Tower Scaffolding; Joint tower scaffolding, also known as system or modular scaffolding, is a versatile construction support structure composed of standardized components like vertical standards, horizontal ledgers, diagonal braces, and connectors. Its strength, quick assembly, and adaptability to different project requirements make it a popular choice in the construction industry. By securely interlocking these components, joint tower scaffolding provides a stable platform for workers to access elevated areas, facilitating safer and more efficient construction and maintenance tasks.

The choice of cantilever scaffolding type depends on factors like the nature of the task, the load-bearing requirements, available space, and site-specific conditions. Safety and engineering considerations are paramount when selecting and erecting cantilever scaffolding to ensure the safety of workers and the stability of the structure.

Different types of cantilever scaffolding

Materials used for manufacturing cantilever scaffolding

Cantilever scaffolding, like other types of scaffolding systems, can be manufactured using various materials, depending on the specific requirements of the project and safety regulations. Common materials used for cantilever scaffolding include:

1. Steel: Steel is one of the most widely used materials for manufacturing cantilever scaffolding. It offers high strength, durability, and load-bearing capacity. Steel scaffolding components can withstand heavy loads and adverse weather conditions, making them suitable for a wide range of applications.

2. Aluminium: Aluminium scaffolding is lightweight, corrosion-resistant, and easy to transport and assemble. It’s often used in situations where mobility and quick setup are essential, such as for maintenance tasks or in locations where steel may be impractical due to weight restrictions.

3. Wood: Wooden cantilever scaffolding is less common but can still be used in specific situations. It’s cost-effective and readily available in many regions. However, wood may not provide the same load-bearing capacity or durability as steel or aluminum, so it’s typically used for lighter tasks.

4. Fiberglass: Fiberglass scaffolding is lightweight, non-conductive, and corrosion-resistant. It’s commonly used when working near electrical installations or in situations where metal scaffolding would be unsuitable.

The choice of material for cantilever scaffolding depends on factors such as the type of project, load-bearing requirements, budget constraints, and local regulations.

Applications of cantilever scaffolding

Cantilever scaffolding is a versatile system that finds various applications in construction, maintenance, and renovation projects. Some common applications of cantilever scaffolding include:

1. Building Facade Maintenance: Cantilever scaffolding is commonly used for tasks like cleaning, painting, and repairing the exteriors of buildings, especially high-rise structures. It allows workers to access different parts of the facade with ease.

2. Window Installation and Repair: When installing or repairing windows on a building’s upper floors, cantilever scaffolding provides a secure platform for workers to perform these tasks safely.

3. Brickwork and Masonry: Bricklayers and masons often use cantilever scaffolding to access specific areas of walls where they need to lay bricks or perform repair work.

4. Plastering and Rendering: For plastering or rendering exterior walls, cantilever scaffolding offers a stable platform for workers to apply materials evenly and efficiently.

5. Exterior Insulation Work: When adding exterior insulation to a building, cantilever scaffolding provides a safe and convenient platform for insulation installation.

6. Roof Maintenance: Cantilever scaffolding can be adapted for use on roofs to perform maintenance tasks such as roofing repairs, gutter cleaning, or chimney maintenance.

7. Bridge and Viaduct Maintenance: Cantilever scaffolding is used in the maintenance and repair of bridges and viaducts, providing access to elevated structures.

8. Dam and Reservoir Maintenance: In dam and reservoir maintenance projects, cantilever scaffolding can be used to reach specific areas of the dam or reservoir structure for inspection or repair.

9. Heritage Restoration: For restoring historic buildings or monuments, cantilever scaffolding offers a way to access delicate or hard-to-reach areas while preserving the structure’s integrity.

10. Industrial Plant Maintenance: In industrial settings, cantilever scaffolding can be used for maintenance work on large structures, tanks, or equipment.

In this article we have discussed cantilever scaffolding components, advantages types and applications. In an upcoming article we will analyse other types of scaffolding systems.
