A truck-mounted crane is a specialised construction equipment that combines a powerful hydraulic crane with the mobility of a truck, allowing for easy transport between job sites. This integration enhances operational efficiency in construction, infrastructure, and industrial projects by enabling quick setup and movement. The crane’s mobility and flexibility significantly enhance operational efficiency, reducing the need for additional transport logistics and minimizing downtime. Its importance lies in its ability to handle heavy loads with precision and safety, facilitating the smooth execution of complex tasks such as assembling large structures, moving heavy materials, and performing maintenance work at elevated heights.
Applications of truck mounted crane
- Material Handling: Lifting and transporting construction materials.
- Building Erection: Erecting steel structures and bridges.
- Foundation Work: Setting up foundation works.
- Road Construction: Installing precast concrete barriers and road signs.
- Utility Installation: Installing utility poles and streetlights.
- Demolition: Dismantling large structures and handling debris.
- Plant Maintenance: Routine maintenance tasks, lifting and replacing machinery parts.
- Equipment Installation: Installing new machinery and heavy industrial equipment.
- Material Handling: Moving raw materials and finished products.
- Storage and Logistics: Loading and unloading materials in warehouses.
Components of truck mounted crane
- Truck Chassis: Provides mobility and supports crane operations.
- Crane Superstructure: Houses the boom, hoist, and operator’s cab, and rotates 360 degrees.
- Boom: Main lifting arm, adjustable in height and reach.
- Hoist: Winch system for raising and lowering the load.
- Outriggers: Extendable legs for stability during lifting.
- Counterweights: Balancing weights to prevent tipping.
- Hydraulic System: Powers crane movements with pumps and cylinders.
- Operator’s Cab: Control center for managing crane functions.
- Safety Devices: Includes load moment indicators and limit switches to ensure safe operation.
Advantages of truck-mounted cranes
- Easily transportable between different job sites.
- Offer rapid setup and deployment at various locations.
- Efficiently handle heavy loads due to their high lifting capacity.
- Stability during lifting is ensured by outriggers and counterweights.
- The adjustable boom allows for extended reach and increased height.
- Precise load positioning is achievable with advanced control systems.
- Eliminate the need for additional transport equipment.
- Streamline operations, reducing overall project downtime.
- Integrated safety devices prevent overloading and minimize accidents.
- Reduce the requirement for multiple cranes or extra lifting equipment.
Different types of truck-mounted cranes
Telescopic Truck-Mounted Cranes:
Telescopic truck-mounted cranes are known for their extendable booms, which can adjust to various lengths using hydraulic cylinders. This design allows the crane to reach impressive heights and distances, making it ideal for tasks that require precise and flexible reach. Key features include a telescoping boom that can be extended or retracted to adjust the lifting height, and a hydraulic system that ensures smooth operation. These cranes are often used in construction sites, maintenance tasks, and infrastructure projects where they can easily adapt to different lifting requirements. Their ability to reach high places and navigate complex job sites makes them invaluable in urban and industrial environments.
Articulating Truck-Mounted Cranes:
Articulating truck-mounted cranes, or knuckle boom cranes, feature a boom with multiple joints or “knuckles” that allow it to bend and maneuver around obstacles. This articulated design provides excellent reach and precision, making these cranes particularly useful in confined or challenging spaces. They are equipped with hydraulic systems that facilitate smooth movement and positioning. Articulating cranes are commonly used in tasks such as tree trimming, utility work, and urban construction where access is limited or where obstacles need to be navigated. Their ability to extend and articulate the boom helps them perform complex lifting tasks in restricted areas.

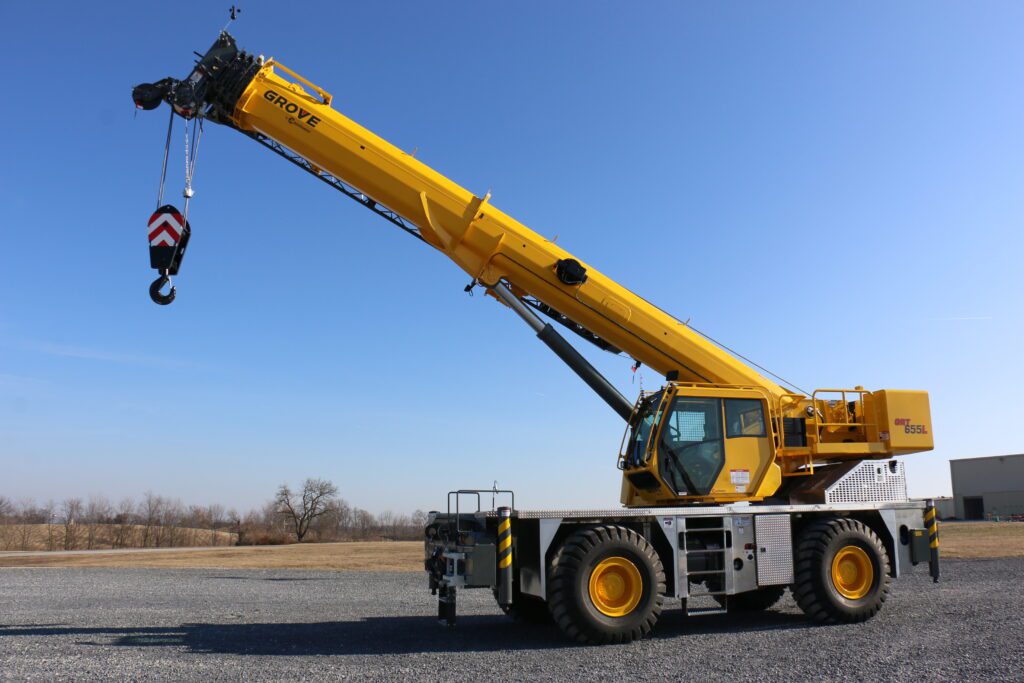

Rough Terrain Truck-Mounted Cranes:
Rough terrain truck-mounted cranes are specifically engineered for operation on uneven and off-road surfaces. They feature large, rugged tires and a reinforced chassis designed to handle rough and unstable ground conditions. These cranes often come with four-wheel drive and advanced suspension systems to enhance mobility and stability. The hydraulic lifting system and outriggers provide additional stability when lifting heavy loads. These cranes are ideal for construction sites with difficult terrain, such as quarry operations, and rural construction projects where traditional cranes might struggle. Their robust build ensures reliability and safety in harsh working conditions.
All-Terrain Truck-Mounted Cranes:
All-terrain truck-mounted cranes combine the features of road-going cranes with those suited for rough terrain, offering a balance between highway mobility and off-road capability. These cranes are equipped with advanced suspension systems and adjustable axles to handle diverse ground conditions. Their flexible boom system and sophisticated stabilization mechanisms allow them to perform in both urban environments and rugged terrains. All-terrain cranes are used in large-scale construction projects, industrial applications, and maintenance work where versatility and the ability to operate across different environments are essential. Their dual capability makes them suitable for tasks that require travel between various job sites with varying conditions.
Loader Truck-Mounted Cranes:
Loader truck-mounted cranes are designed primarily for loading and unloading operations. They feature a compact, often foldable boom that extends and rotates using hydraulic power, allowing for efficient handling of materials. These cranes are typically mounted on a truck chassis, making them easily transportable and versatile for various loading tasks. Key features include the crane’s ability to lift and place materials with precision and its compact design that allows for maneuverability in tight spaces. Loader cranes are frequently used in logistics, construction, and transportation sectors for tasks such as loading building materials, equipment, and other heavy items onto trucks. Their efficiency in handling and their ability to quickly move between sites make them valuable for operations requiring frequent loading and unloading.
Boom Truck-Mounted Cranes:
Boom truck-mounted cranes come with a fixed boom mounted on a truck chassis, providing a stable platform for lifting and positioning tasks. These cranes typically have a fixed length boom that offers straightforward, reliable lifting capabilities. The truck-mounted configuration allows for easy transport and quick deployment, making these cranes suitable for projects requiring mobility and stability. Features often include a robust lifting mechanism and a stable base that ensures safety and control during operations. Boom truck-mounted cranes are commonly used in maintenance, construction, and utility work where precise lifting and positioning are required. Their ease of transport and setup makes them ideal for projects that involve frequent movement and lifting tasks.
Why the demand for truck mounted cranes in India?
The demand for truck-mounted cranes in India is primarily fueled by:
- Ongoing projects like highways and bridges require the versatile lifting capabilities of truck-mounted cranes.
- Rapid urbanization and increased construction activities drive the need for efficient and adaptable lifting equipment.
- The development of smart cities and urban infrastructure elevates the demand for cranes that can handle complex lifting tasks in confined spaces.
- The industrial sector and logistics operations require these cranes for handling heavy machinery and materials in factories and warehouses.
- Large-scale public works and infrastructure projects spearheaded by the government create a steady demand for reliable lifting solutions.
- Growing emphasis on modern, safe, and efficient equipment drives the adoption of advanced truck-mounted cranes.
- The cranes’ ability to be easily transported and deployed in various terrains and job sites enhances their appeal.
Conclusion
Truck-mounted cranes are essential equipment that blend powerful hydraulic lifting capabilities with the mobility of a truck, enhancing operational efficiency across diverse projects. As technology continues to advance, these cranes are expected to evolve, offering even greater capabilities and efficiency, thereby reinforcing their pivotal role in modern industrial and construction environments.
